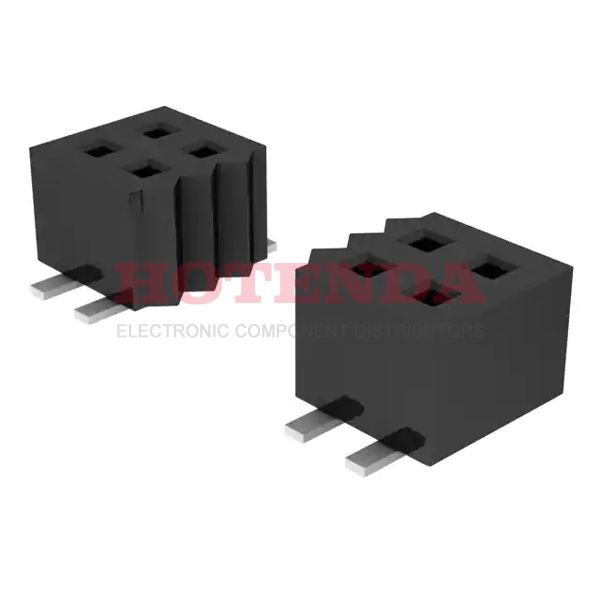

Name: CLP-133-02-G-D-BE-P
Brand: Samtec Inc.
SKU: CLP-133-02-G-D-BE-P
Availability: InStock

new-10%

CLP-133-02-G-D-BE-P

Manufacturer part number:CLP-133-02-G-D-BE-P

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 66 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-133-02-G-D-BE-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	CLP
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	66
Number of Rows	2
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Voltage - Rated AC	240V
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-133-02-G-D-BE-P Product Details

CLP-133-02-G-D-BE-P Overview

This product is packaged in a Receptacle, Bottom Entry box.Surface Mount indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the CLP Series.In many ways, Pick and Place makes it more powerful.Operating temperature is set to -55°C~125°C.
