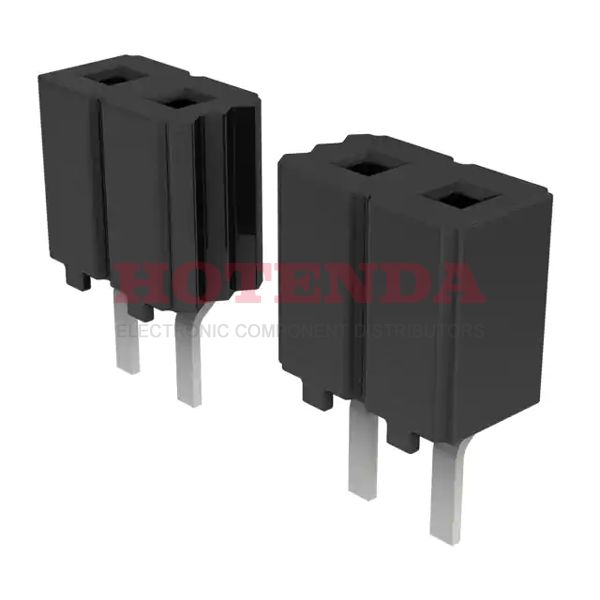

Name: CES-144-01-L-S
Brand: Samtec Inc.
SKU: CES-144-01-L-S
Availability: InStock

new-10%

CES-144-01-L-S

Manufacturer part number:CES-144-01-L-S

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleBulkGoldPolybutylene Terephthalate (PBT)44 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CES-144-01-L-S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	CES
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle
Number of Positions	44
Number of Rows	1
Gender	Female
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Terminal Pitch	2.54mm
Insulation Height	0.200 5.08mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.128 3.25mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CES-144-01-L-S Product Details

CES-144-01-L-S Overview

The packaging contains Receptacle.Through Hole is the mounting type of the device.Packaging is performed using a Bulk case.The product is a part of the CES Series.As well as LOW PROFILE, to name a few.Mounted by Through Hole.Device runs in -55°C~125°C operating temperature.
