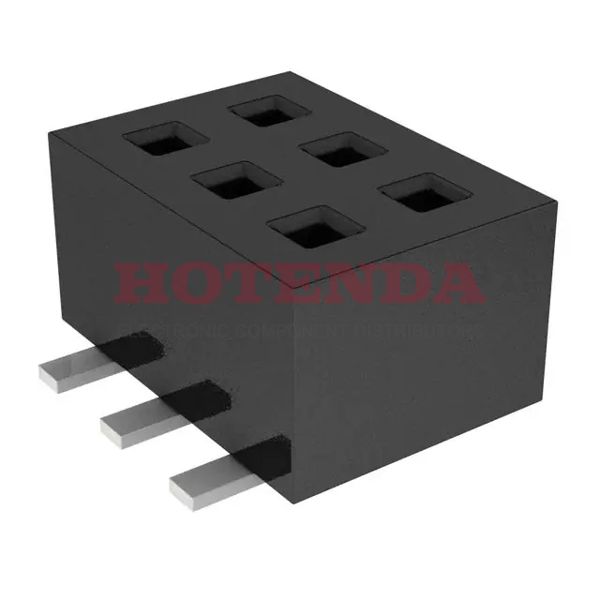

Name: CLP-103-02-SM-D-TR
Brand: Samtec Inc.
SKU: CLP-103-02-SM-D-TR
Availability: InStock

new-10%

CLP-103-02-SM-D-TR

Manufacturer part number:CLP-103-02-SM-D-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 6 Positions Female Socket

Case Package:SOT-23

Datasheet:CLP-103-02-SM-D-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	6
Number of Rows	2
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	20
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.517 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.09 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.05 inch
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLP-103-02-SM-D-TR Product Details

CLP-103-02-SM-D-TR Overview

A Receptacle packaging is included.It's mounted Surface Mount.We use a Tape & Reel (TR) case to package the product.It's from the CLP Series.-55°C~125°C Operating Temperature is what the device runs at.
