SSM-17-S-DH

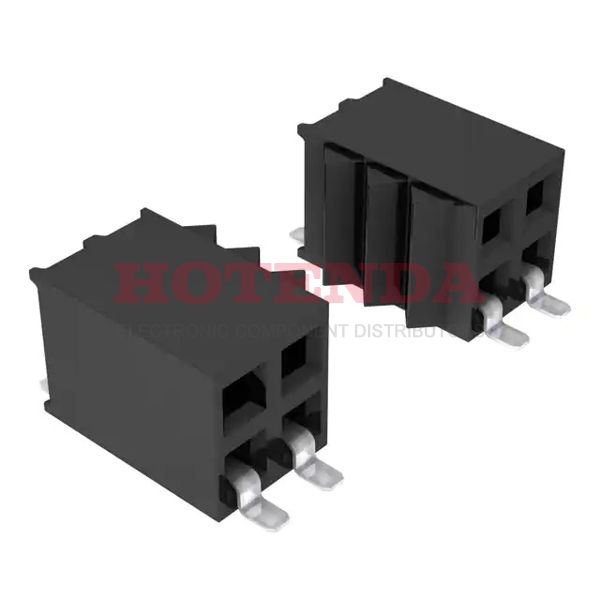

  • SSM-17-S-DH - 2 RowsReceptacleSolderPhosphor BronzeSurface Mount, Right AngleBulkGoldLiquid Crystal Polymer (LCP)Female Socket
  • SSM-17-S-DH - 2 RowsReceptacleSolderPhosphor BronzeSurface Mount, Right AngleBulkGoldLiquid Crystal Polymer (LCP)Female Socket

SSM-17-S-DH

SSM-17-S-DH

Samtec Inc.

2 RowsReceptacleSolderPhosphor BronzeSurface Mount, Right AngleBulkGoldLiquid Crystal Polymer (LCP)Female Socket

SOT-23

SSM-17-S-DH Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 3 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature-55°C~125°C
PackagingBulk
Series SSM
Part StatusActive
Termination Solder
Connector Type Receptacle
Number of Rows 2
Gender Female
Voltage - Rated 405VAC 572VDC
Fastening TypePush-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 5.2A per Contact
Insulation Height 0.225 5.72mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Number of Contacts 14
Contact Finish - Post Tin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:1950 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.45000$4.45

SSM-17-S-DH Product Details

SSM-17-S-DH Overview


The product comes in a package of Receptacle.Surface Mount, Right Angle is the type of mounting for the device.To package the product, we use a Bulk case.This is from the SSM Series.-55°C~125°C Operating Temperature is used by the device.

SSM-17-S-DH Features


SSM series

SSM-17-S-DH Applications


There are a lot of Samtec Inc. SSM-17-S-DH Rectangular Connectors applications.

  • Datacom
  • Embedded systems
  • Communication
  • Telecommunications
  • Instrumentation
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Data Technology
  • Transportation
