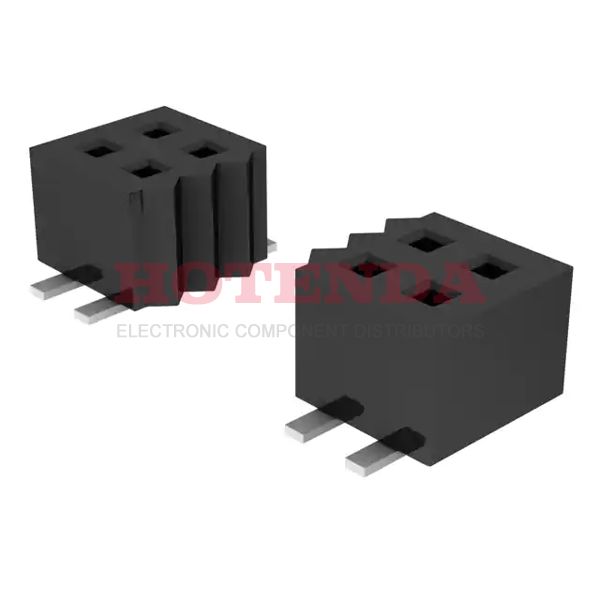

Name: CLP-109-02-F-D-A-PA-TR
Brand: Samtec Inc.
SKU: CLP-109-02-F-D-A-PA-TR
Availability: InStock

new-10%

CLP-109-02-F-D-A-PA-TR

Manufacturer part number:CLP-109-02-F-D-A-PA-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)18 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLP-109-02-F-D-A-PA-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
Feature	Board Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	18
Number of Rows	2
Voltage - Rated	240VAC 330VDC
Fastening Type	Push-Pull
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Voltage - Rated AC	240V
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-109-02-F-D-A-PA-TR Product Details

CLP-109-02-F-D-A-PA-TR Overview

This product is packaged in a Receptacle box.Surface Mount indicates that the device is mounted.Tape & Reel (TR) cases are used to package the product.Product number CLP belongs to the CLP Series.A number of features make the Board Guide, Pick and Place feature more powerful.It runs at -55°C~125°C Operating Temperature.
