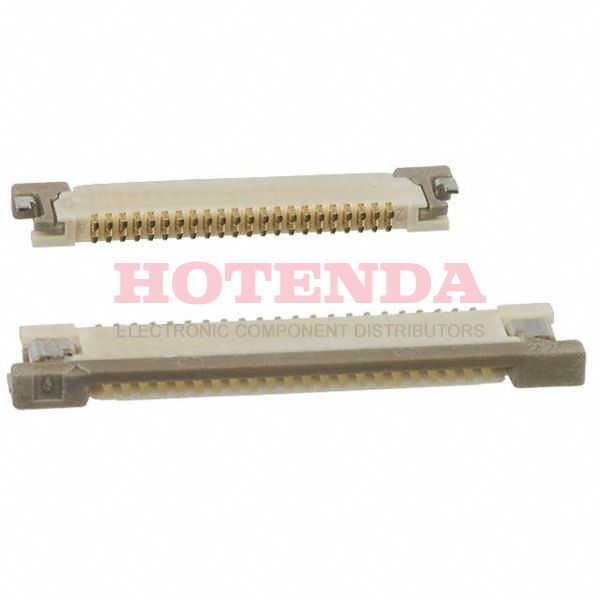

Name: XF2L-2235-1
Brand: Omron Electronics Inc-EMC Div
SKU: XF2L-2235-1
Availability: InStock

new-10%

XF2L-2235-1

Manufacturer part number:XF2L-2235-1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2L-2235-1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2L-2235-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2004
Series	XF2L
JESD-609 Code	e3
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Number of Positions	22
Number of Rows	1
Gender	Female
Voltage - Rated	50V
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	22
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin Alloy
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.047 inch
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	SINGLE PRONG
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Slide Lock
Actuator Color	Brown
Height	1.2mm
Length	15.9mm
Width	3.45mm
Contact Finish Thickness	78.7μin 2.00μm
Plating Thickness	80μin
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

XF2L-2235-1 Product Details

XF2L-2235-1 Overview

Surface Mount, Right Angle is the mount type.An orange Tape & Reel (TR) case is used to package the product.XF2L Series product.Additionally, there are features like LOW PROFILE, ZIF, just to name a few.In many ways, it is more powerful due to its Zero Insertion Force (ZIF) feature.Surface Mount is used to mount the part.Device runs at -30°C~85°C Operating Temperature.
