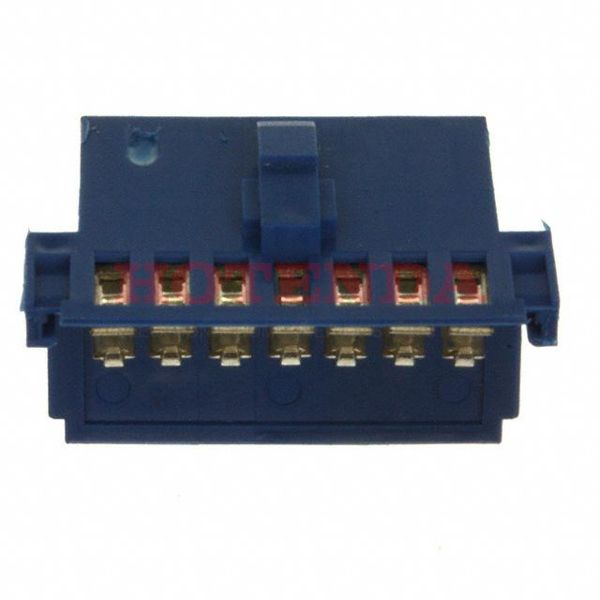

Name: 10022753-007LF
Brand: Amphenol ICC (FCI)
SKU: 10022753-007LF
Availability: InStock

new-10%

10022753-007LF

Manufacturer part number:10022753-007LF

Manufacturer:Amphenol ICC (FCI)

Description:10022753-007LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:10022753-007LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Nickel Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Thermoplastic
Operating Temperature	-65°C~105°C
Packaging	Tray
Series	Clincher™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
Connector Type	BOARD CONNECTOR
Number of Positions	7
Number of Rows	1
Gender	Female
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2A per Contact
Pitch	0.100 2.54mm
Total Number of Contacts	7
Orientation	Straight
Depth	12.7mm
Current Rating	2A
Contact Finish	Tin
Mating Information	NO
UL Flammability Code	94V-0
Housing Color	Blue
Contact Resistance	15mOhm
Insulation Resistance	5GOhm
Max Voltage Rating (AC)	500V
Wire/Cable Type	Flat
Mating Cycles	100
Flat Flex Type	FFC, FPC
Connector/Contact Type	Receptacle
Locking Feature	Latch Lock
Height	15.5mm
Length	22.61mm
Width	2.54mm
Contact Finish Thickness	100.0μin 2.54μm
FFC, FCB Thickness	0.33mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

10022753-007LF Product Details

10022753-007LF Overview

It comes in BOARD CONNECTOR packaging.This device has a Free Hanging (In-Line) mounting type.Packaging is performed using a Tray case.Specifically, it is one of the products in the Clincher? Series.Cable, Free Hanging mounts the part.As a result, the device runs at -65°C~105°C Operating Temperature.
