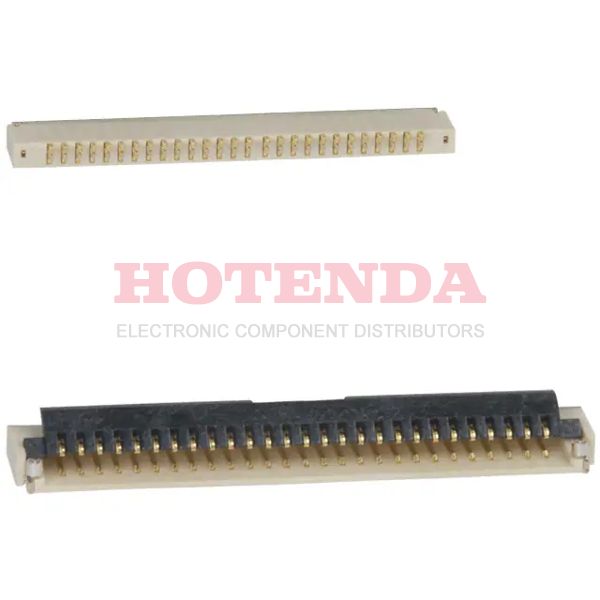

Name: FH19SC-27S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: FH19SC-27S-0.5SH(05)
Availability: InStock

new-10%

FH19SC-27S-0.5SH(05)

Manufacturer part number:FH19SC-27S-0.5SH(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH19SC-27S-0.5SH(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19SC-27S-0.5SH(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19SC
JESD-609 Code	e4
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	27
Number of Rows	1
Gender	Receptacle
Additional Feature	ZIF, LOW PROFILE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	27
Orientation	Right Angle
Depth	3.5mm
Current Rating	500mA
Contact Finish	Gold
Lead Pitch	500μm
UL Flammability Code	94V-0
Housing Color	Beige
Contact Resistance	100mOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Length	15.5mm
Height Above Board	0.037 0.95mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH19SC-27S-0.5SH(05) Product Details

FH19SC-27S-0.5SH(05) Overview

It comes in a FFC/FPC CONNECTOR package.Surface Mount, Right Angle is the type of mounting for the device.An Tape & Reel (TR) case is utilized for packaging the product.There is a product in the FH19SC Series.There are also other features like ZIF, LOW PROFILE, to name a few.Many aspects of its Solder Retention, Zero Insertion Force (ZIF) feature increase its effectiveness.Surface Mount is used to mount the part.The device runs in -55°C~85°C Operating Temperature.
