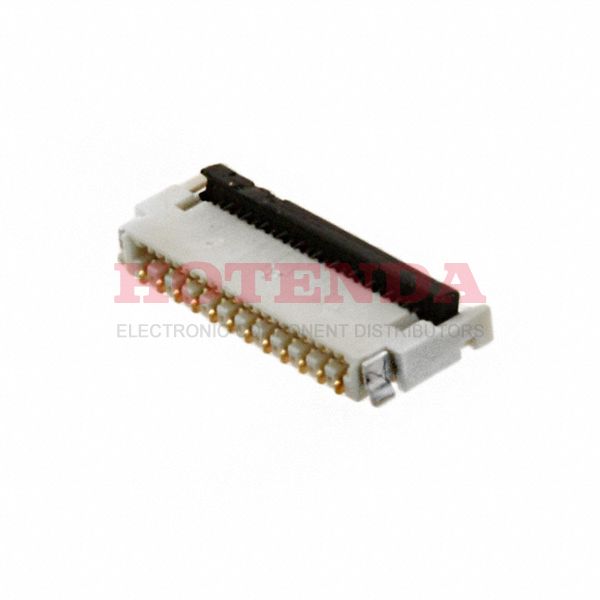

Name: 5025982391
Brand: Molex
SKU: 5025982391
Availability: InStock

new-10%

5025982391

Manufacturer part number:5025982391

Manufacturer:Molex

Description:5025982391 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5025982391 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2012
Series	BackFlip, Easy-On 502598
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	23
Voltage - Rated	50V
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Contact Finish	Gold
Housing Color	White
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock, Backlock
Actuator Color	Black
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.045 1.14mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0, UL94 HB
RoHS Status	ROHS3 Compliant

5025982391 Product Details

5025982391 Overview

The mounting type of the device is Surface Mount, Right Angle.To package the product, a Tape & Reel (TR) case is used.There is a product in the BackFlip, Easy-On 502598 Series.In many ways, Solder Retention makes it more powerful.As a result, the device runs at -40°C~85°C Operating Temperature.
