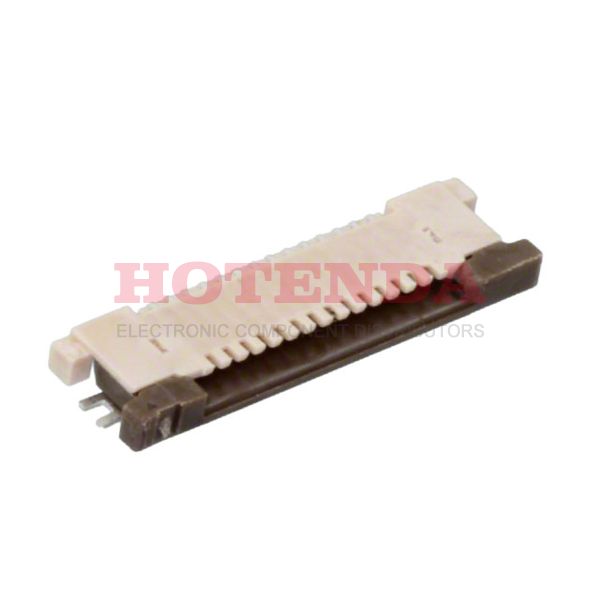

Name: 0545501494
Brand: Molex
SKU: 0545501494
Availability: InStock

new-10%

0545501494

Manufacturer part number:0545501494

Manufacturer:Molex

Description:0545501494 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0545501494 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 54550
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	14
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	14
Contact Finish	Tin Bismuth
Contact Gender	FEMALE
UL Flammability Code	94V-0
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0545501494 Product Details

0545501494 Overview

You'll get FFC/FPC CONNECTOR packages.Surface Mount, Right Angle is the mounting type.We package the product with a Tape & Reel (TR) case.Among the products in the Easy-On 54550 Series, it is one of the most popular.Additionally, there are features like ZIF, just to name a few.A number of advantages are provided by its Solder Retention, Zero Insertion Force (ZIF) feature.Devices operate at -20°C~85°C operating temperatures.
