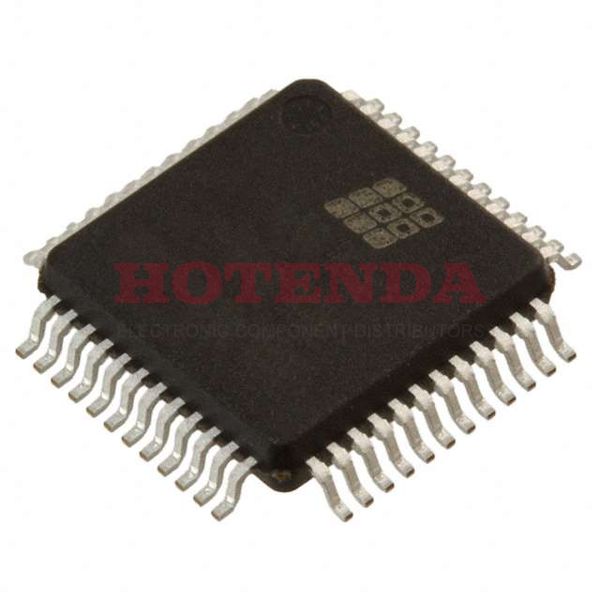

ISPPAC-CLK5304S-01T48C Overview
This clock IC is packaged using the Tray method. The 48-LQFP package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 240. In it, there are 48 terminations to be found. This time clock generator should be voltaged at 3.3V. A clock generator's input is called HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 267MHz is available. With the Surface Mount, it is easy to install this electric component on the panel. Clock generators can take up to 3.6V of power as a maximum supply voltageThis frequency synthesizer requires a supply voltage above 3V to be safe. This clock PLL works with a supply voltage of 3V~3.6V. Using the test statistics, it is estimated that the ambient temperature should be set to 0°C~70°C. A frequency synthesizer which is compatible with the eHSTL, HSTL, LVCMOS, LVTTL, SSTL logic levels is presented here. A Clock Generator, Fanout Distribution, Zero Delay Buffer is a classification for the electronic part in question. Microprocessors are specifically designed to use this clock-generating IC, which has a 48-bit output. This part number ISPPAC-CLK53 is related to the following electrical components. PF synthesizers is equipped with 48 pins. PLL clock can handle a voltage of 3.3V as its supply voltage. The device is usually classified as a type of Clock Drivers device. There are a number of electronic parts in the ispClock™ series, including this one. A search for the 5304 family will yield similar electronic components.
ISPPAC-CLK5304S-01T48C Features
Available in the 48-LQFP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
ISPPAC-CLK5304S-01T48C Applications
There are a lot of Lattice Semiconductor Corporation
ISPPAC-CLK5304S-01T48C Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
