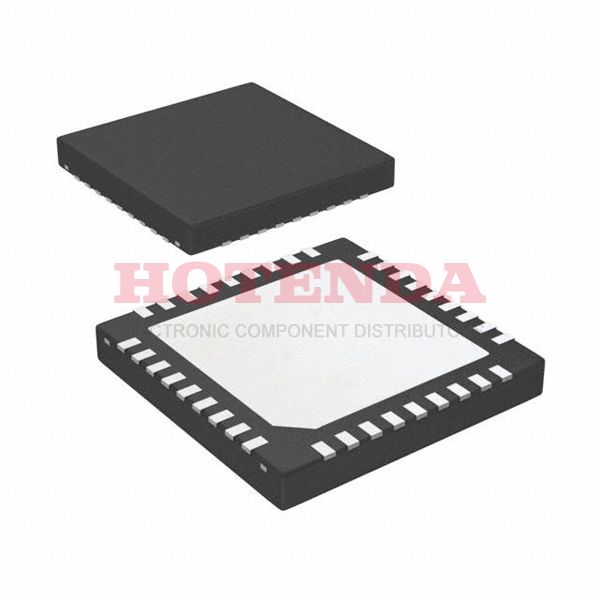

LMX2531LQX1500E/NOPB Overview
Clock generator is packaged in the way of Tape & Reel (TR). Clock PLL is embedded in the 36-WFQFN Exposed Pad package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 36 terminations can be found in frequency generators. The supply voltage of 3V allows for high efficiency. Clock is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 1.51GHz is the maximal value for normal operation. PLL clock is mounted in the way of Surface Mount. Clock generators should operate with the voltage supply of 2.8V~3.2V. The temperature should be set at -40°C~85°C to ensure reliable performance. CMOS is designed for clock generator's output. This electronic component can be classified into Frequency Synthesizer (RF). According to the base part number, its related parts can be founded. Clock generator is designed with 36 pins. The supply voltage should be maintained at 3V for high efficiency. Clock generator can also be included into PLL or Frequency Synthesis Circuits. The maximum supply current (Isup) should not be in excess of 46mA.
LMX2531LQX1500E/NOPB Features
Available in the 36-WFQFN Exposed Pad
Supply voltage of 3V
Operating supply voltage of 3V
LMX2531LQX1500E/NOPB Applications
There are a lot of Texas Instruments
LMX2531LQX1500E/NOPB Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
