CY25100ZXI31 Overview

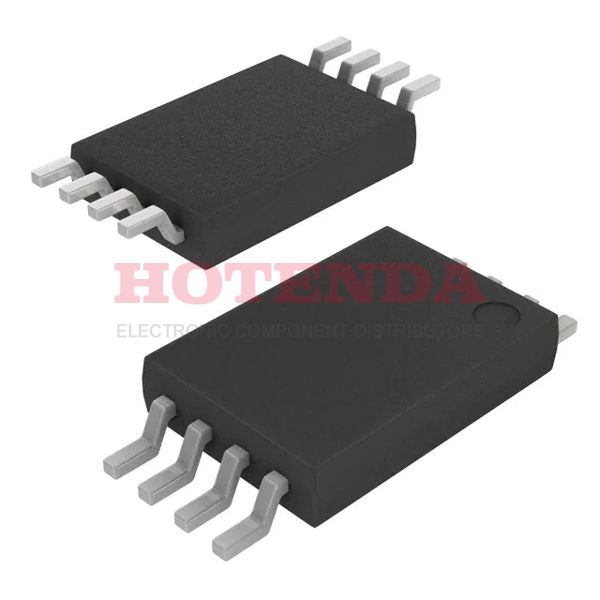

As a clock IC, it uses the Tube package. 8-TSSOP (0.173, 4.40mm Width) contains this Clock PLL. This Clock PLL will be fed by CMOS, Crystal as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 200MHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. There are 3.13V~3.45V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at -40°C~85°C. I would like to present to you a frequency synthesizer that is compatible with CMOS logic levels. This is an electronic part that can be classified as a Fanout Buffer (Distribution), Spread Spectrum Clock Generator in this case. CY25100 is the base part number for finding related electronic parts. There is a 8 pin that is available on the digital clock generator. Despite its low operating temperature, this clock generator has -40°C operations. There is even a possibility that this clock generator ic will last even when the temperature is 85°C. The maximum supply voltage that clock generator can handle is 3.3V.
CY25100ZXI31 Features
Available in the 8-TSSOP (0.173, 4.40mm Width)
Operating supply voltage of 3.3V
CY25100ZXI31 Applications
There are a lot of Cypress Semiconductor Corp
CY25100ZXI31 Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
