Name: M80-7701445
Brand: Harwin Inc.
SKU: M80-7701445
Availability: InStock

new-10%

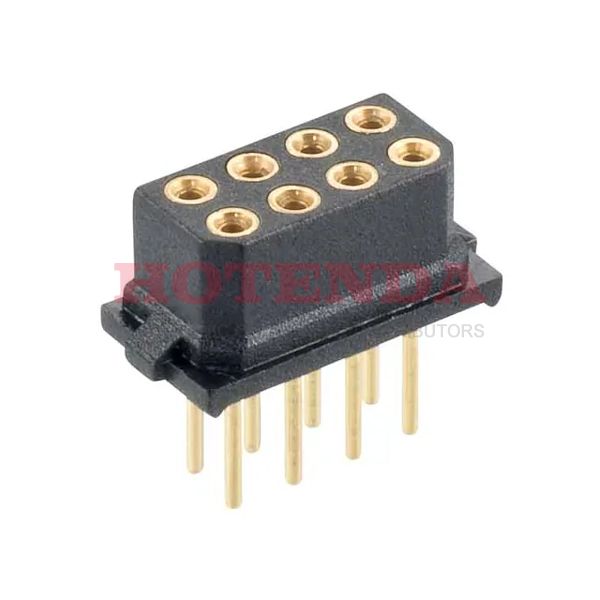

M80-7701445

Manufacturer part number:M80-7701445

Manufacturer:Harwin Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTubeGoldPolyamide (PA46), Nylon 4/614 PositionsFemale Socket

Case Package:SOT-23

Datasheet:M80-7701445 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2011
Series	Datamate L-Tek
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	14
Applications	Automotive, General Purpose, Military
Number of Rows	2
Voltage - Rated	120V
Additional Feature	POLARISED
HTS Code	8536.69.40.40
Fastening Type	Locking Ramp
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Insulation Height	0.202 5.14mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.675 inch
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.177 4.50mm
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Rated Current (Signal)	3A
Insulation Resistance	100000000Ohm
Mating Contact Pitch	0.079 inch
Durability	500 Cycles
Contact Finish Thickness - Mating	12.0μin 0.30μm
Contact Finish Thickness - Post	10.0μin 0.25μm
Length - Termination	0.177 inch
Stack Height (Mating)	7.23mm 7.85mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M80-7701445 Product Details

M80-7701445 Overview

The product comes in a package of Receptacle.It's mounted Through Hole.A Tube case is used to package the product.As a product of the Datamate L-Tek Series, it can be found in this category.Besides that, there's also POLARISED, to name a few.An application for the device could be Automotive, General Purpose, Military.It is mounted by Through Hole.-55°C~125°C Operating Temperature is the default.
