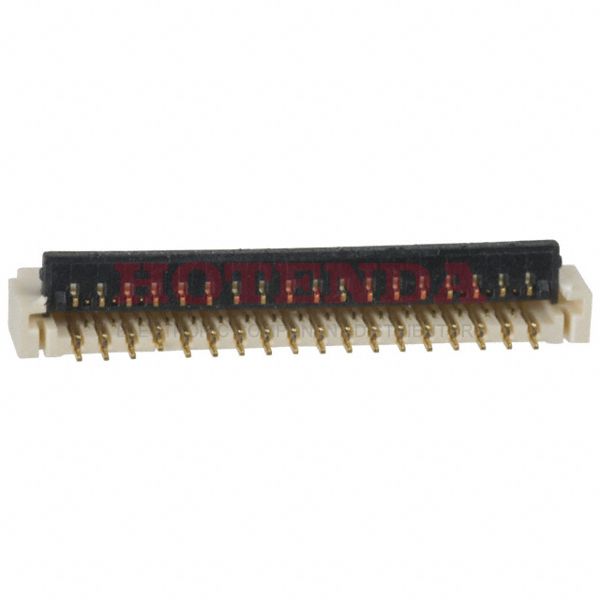

Name: 10013057-351200ELF
Brand: Amphenol ICC (FCI)
SKU: 10013057-351200ELF
Availability: InStock

new-10%

10013057-351200ELF

Manufacturer part number:10013057-351200ELF

Manufacturer:Amphenol ICC (FCI)

Description:10013057-351200ELF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:10013057-351200ELF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Thermoplastic, Glass Filled
Actuator Material	Plastic
Operating Temperature	-25°C~85°C
Packaging	Tape & Reel (TR)
Series	SFYL
JESD-609 Code	e4
Feature	Low Insertion Force (LIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	35
Number of Rows	1
Voltage - Rated	200V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	35
Orientation	Right Angle
Depth	3mm
Current Rating	200mA
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	White
Contact Resistance	50mOhm
Mating Cycles	10
Flat Flex Type	FFC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Notched
Locking Feature	Flip Lock
Actuator Color	Black
Contact Location	Bottom
Length	12.8mm
Width	3mm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

10013057-351200ELF Product Details

10013057-351200ELF Overview

A Surface Mount, Right Angle mounting type is specified for the device.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the SFYL Series.A number of aspects of its Low Insertion Force (LIF) feature make it more powerful.Surface Mount is used to mount the part.This device operates at a temperature of -25°C~85°C.
