Name: SI3812DV-T1-E3
Brand: Vishay Siliconix
SKU: SI3812DV-T1-E3
Availability: InStock

new-10%

SI3812DV-T1-E3

Manufacturer part number:SI3812DV-T1-E3

Manufacturer:Vishay Siliconix

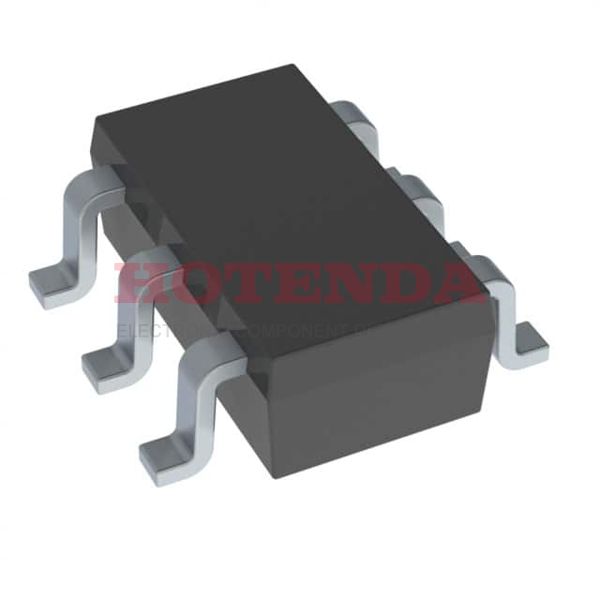

Description:MOSFET N-CH 20V 2A 6-TSOP

Case Package:SOT-23

Datasheet:SI3812DV-T1-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Number of Pins	6
Supplier Device Package	6-TSOP
Weight	19.986414mg
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2011
Series	LITTLE FOOT®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Channels	1
Power Dissipation-Max	830mW Ta
Power Dissipation	830mW
Turn On Delay Time	10 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	125mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	600mV @ 250μA (Min)
Current - Continuous Drain (Id) @ 25°C	2A Ta
Gate Charge (Qg) (Max) @ Vgs	4nC @ 4.5V
Rise Time	30ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4.5V
Vgs (Max)	±12V
Fall Time (Typ)	30 ns
Turn-Off Delay Time	14 ns
Continuous Drain Current (ID)	2.4A
Gate to Source Voltage (Vgs)	12V
Drain to Source Breakdown Voltage	20V
FET Feature	Schottky Diode (Isolated)
Drain to Source Resistance	125mOhm
Rds On Max	125 mΩ
Height	1mm
Length	3.05mm
Width	1.65mm
RoHS Status	ROHS3 Compliant

About SI3812DV-T1-E3

The SI3812DV-T1-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 20V 2A 6-TSOP.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI3812DV-T1-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
