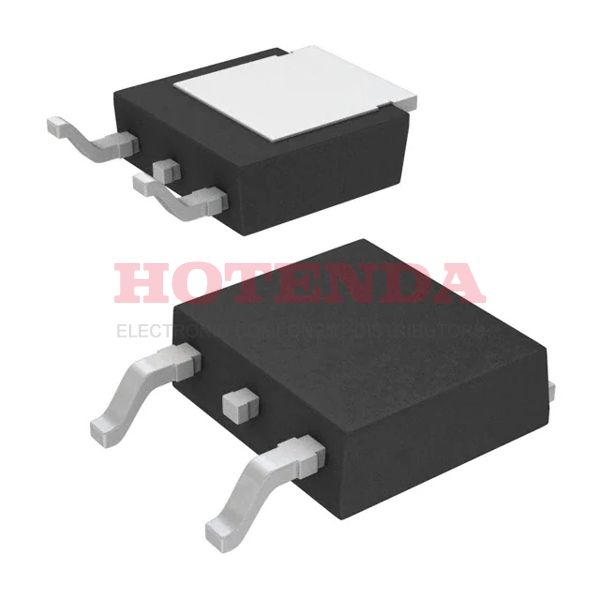

IRFR3704ZPBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRFR3704ZPBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Contact Plating
Tin
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins
3
Transistor Element Material
SILICON
Operating Temperature
-55°C~175°C TJ
Packaging
Tube
Published
2004
Series
HEXFET®
JESD-609 Code
e3
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Subcategory
FET General Purpose Power
Voltage - Rated DC
20V
Technology
MOSFET (Metal Oxide)
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Current Rating
60A
[email protected] Reflow Temperature-Max (s)
30
JESD-30 Code
R-PSSO-G2
Number of Elements
1
Power Dissipation-Max
48W Tc
Element Configuration
Single
Operating Mode
ENHANCEMENT MODE
Power Dissipation
48W
Case Connection
DRAIN
Turn On Delay Time
41 ns
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
8.4m Ω @ 15A, 10V
Vgs(th) (Max) @ Id
2.55V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
1190pF @ 10V
Current - Continuous Drain (Id) @ 25°C
60A Tc
Gate Charge (Qg) (Max) @ Vgs
14nC @ 4.5V
Rise Time
8.9ns
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±20V
Fall Time (Typ)
12 ns
Turn-Off Delay Time
4.9 ns
Continuous Drain Current (ID)
60A
Threshold Voltage
2.1V
JEDEC-95 Code
TO-252AA
Gate to Source Voltage (Vgs)
20V
Drain-source On Resistance-Max
0.0084Ohm
Drain to Source Breakdown Voltage
20V
Pulsed Drain Current-Max (IDM)
240A
Recovery Time
19 ns
Height
2.26mm
Length
6.73mm
Width
6.22mm
Radiation Hardening
No
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:1585 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.122093
$1.122093
10
$1.058579
$10.58579
100
$0.998659
$99.8659
500
$0.942131
$471.0655
1000
$0.888803
$888.803
IRFR3704ZPBF Product Details
IRFR3704ZPBF Description
IRFR3704ZPBF is a 20v HEXFET? Power MOSFET. The Infineon IRFR3704ZPBF can be applied in high-Frequency Synchronous Buck Converters for Computer Processor Power, and High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use. The operating junction and storage temperature are between -55 and 175℃. The MOSFET IRFR3704ZPBF is in the TO-252-3 package with 48W power dissipation.
IRFR3704ZPBF Features
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
High-Frequency Synchronous Buck Converters for Computer Processor Power
High-Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Lead-Free
IRFR3704ZPBF Applications
Computer Processor Power
Telecom
Industrial Use
DC motor drive
High-efficiency synchronous rectification in SMPS
