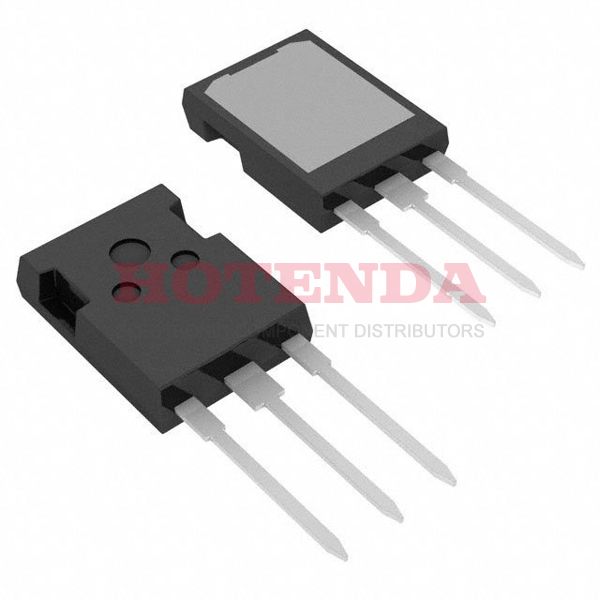

IXFX90N30

Manufacturer part number:IXFX90N30

Manufacturer:IXYS

Description:MOSFET N-CH 300V 90A PLUS247

Case Package:SOT-23

Datasheet:IXFX90N30 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2002
Series	HiPerFET™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	3
ECCN Code	EAR99
Resistance	33MOhm
Terminal Finish	Matte Tin (Sn)
Additional Feature	AVALANCHE RATED
Subcategory	FET General Purpose Power
Voltage - Rated DC	300V
Technology	MOSFET (Metal Oxide)
Current Rating	90A
Pin Count	3
Number of Elements	1
Power Dissipation-Max	560W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	560W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	33m Ω @ 45A, 10V
Vgs(th) (Max) @ Id	4V @ 8mA
Input Capacitance (Ciss) (Max) @ Vds	10000pF @ 25V
Current - Continuous Drain (Id) @ 25°C	90A Tc
Gate Charge (Qg) (Max) @ Vgs	360nC @ 10V
Rise Time	55ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	40 ns
Turn-Off Delay Time	100 ns
Continuous Drain Current (ID)	90A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	300V
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
