Name: IRL3715LPBF
Brand: Infineon Technologies
SKU: IRL3715LPBF
Availability: InStock

new-10%

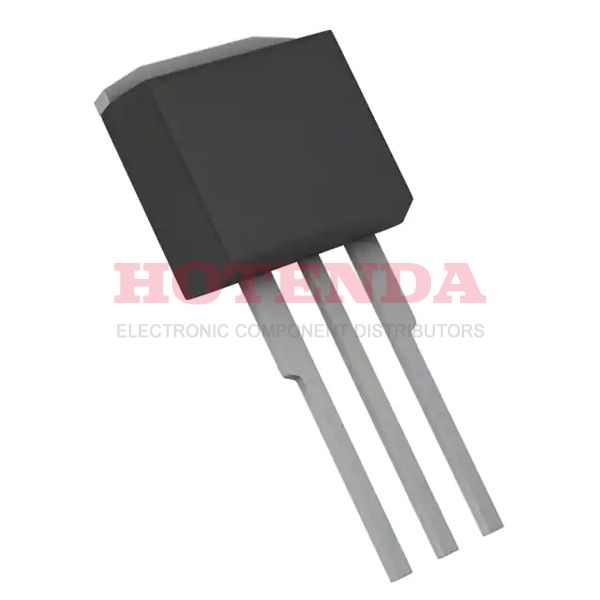

IRL3715LPBF

Manufacturer part number:IRL3715LPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 20V 54A TO-262

Case Package:SOT-23

Datasheet:IRL3715LPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Supplier Device Package	TO-262
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Voltage - Rated DC	20V
Technology	MOSFET (Metal Oxide)
Current Rating	54A
Power Dissipation-Max	3.8W Ta 71W Tc
Power Dissipation	71W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	14mOhm @ 26A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1060pF @ 10V
Current - Continuous Drain (Id) @ 25°C	54A Tc
Gate Charge (Qg) (Max) @ Vgs	17nC @ 4.5V
Rise Time	73ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Continuous Drain Current (ID)	54A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	20V
Input Capacitance	1.06nF
Drain to Source Resistance	20mOhm
Rds On Max	14 mΩ
RoHS Status	RoHS Compliant
Lead Free	Lead Free
