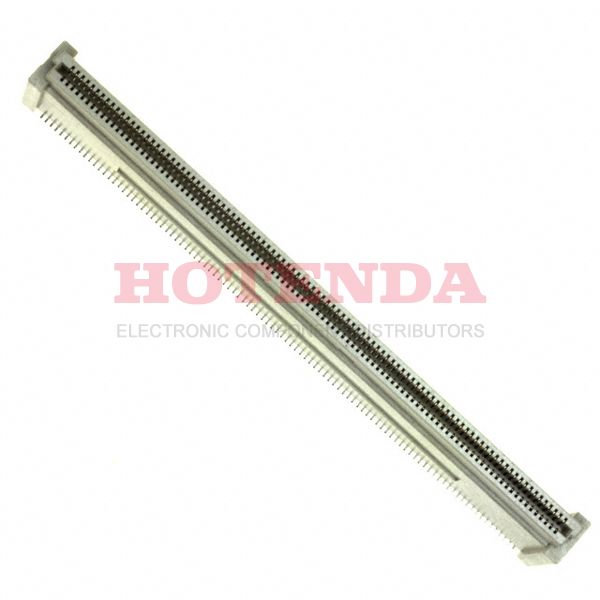

Name: 6-1735480-0
Brand: TE Connectivity AMP Connectors
SKU: 6-1735480-0
Price: 10.22000 USD
Availability: InStock

new

6-1735480-0

Manufacturer part number:6-1735480-0

Manufacturer:TE Connectivity AMP Connectors

Description:Receptacle, Outer Shroud Contacts Tube 2 Rows 0.031 0.80mm Surface Mount 200 Positions Free Height (FH) Gold SMD/SMT

Case Package:SOT-23

Datasheet:6-1735480-0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	36 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
PCB Mount Retention	Without
Packaging	Tube
Published	2009
Series	Free Height (FH)
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	200
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Rows	2
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	200
Orientation	Vertical
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Natural
Operating Supply Voltage	100V
Insulation Resistance	2MOhm
Row Spacing	2.4 mm
ELV	Compliant
Sealable	No
Contact Current Rating	500mA
Circuit Application	Signal
Mating Alignment	With
Preloaded	Yes
Height	17mm
Contact Finish Thickness	8.00μin 0.203μm
Contact Finish Thickness - Mating	200 nm
Height Above Board	0.620 15.75mm
Stack Height	18mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

6-1735480-0 Product Details

6-1735480-0 Overview

The product comes in a package of Receptacle, Outer Shroud Contacts.To package the product, a Tube case is used.Surface Mount is the type of mounting for the device.The product is a member of the Free Height (FH) Series.It is possible to maintain Board Guide while the system is operating.For mounting this part, a Surface Mount socket is required.Use it when the temperature is below 125°C.Temperatures below -40°C are required for this device to operate.Due to its suitability for operation with a 100V supply, this device can be used with this supply.
