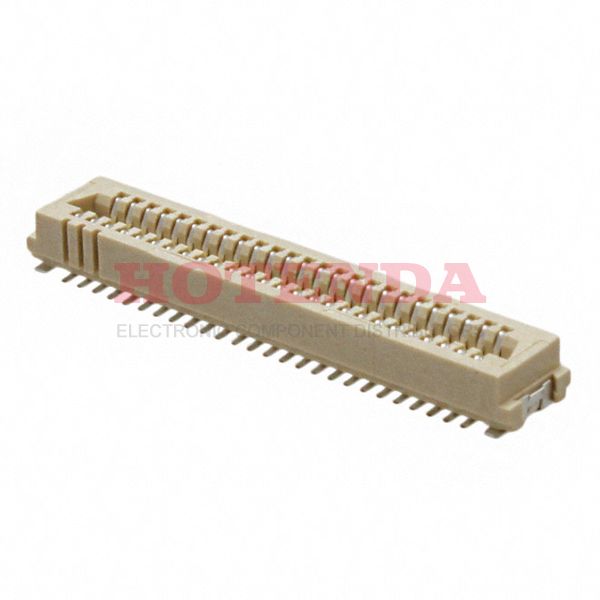

Name: 91930-21151LF
Brand: Amphenol ICC (FCI)
SKU: 91930-21151LF
Price: 7.19000 USD
Availability: InStock

new

91930-21151LF

Manufacturer part number:91930-21151LF

Manufacturer:Amphenol ICC (FCI)

Description:91930-21151LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:91930-21151LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	Polyester
Material	Liquid Crystal Polymer
Housing Material	Polymer
Packaging	Tube
Published	2007
Series	Conan™, MezzSelect™
JESD-609 Code	e3
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	51
Max Operating Temperature	130°C
Min Operating Temperature	-55°C
Color	Cream
Number of Rows	2
Gender	Receptacle
Voltage - Rated	500V
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	51
Orientation	Straight
Depth	5.59mm
Current Rating	1A
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold or Gold, GXT™
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Housing Color	Natural
Contact Resistance	30mOhm
Insulation Resistance	1GOhm
Row Spacing	2.59 mm
Contact Pattern	STAGGERED
Height	3.28mm
Length	30.3mm
Width	5mm
Contact Finish Thickness	15.0μin 0.38μm
Plating Thickness	15μin
Height Above Board	0.129 3.28mm
Stack Height (Mating)	4.15mm 4.5mm 5mm 5.5mm 6mm 7mm 7.52mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

91930-21151LF Product Details

91930-21151LF Overview

The packaging is Receptacle, Outer Shroud Contacts.A Tube case is used for packaging.A Surface Mount mounting type is specified for the device.This is from the Conan?, MezzSelect? Series.If you operate it, you can keep Board Guide, Solder Retention constant.This part requires a Surface Mount socket for mounting.If it is to be used, it should be kept at a temperature below 130°C.Minimum temperature is -55°C.
