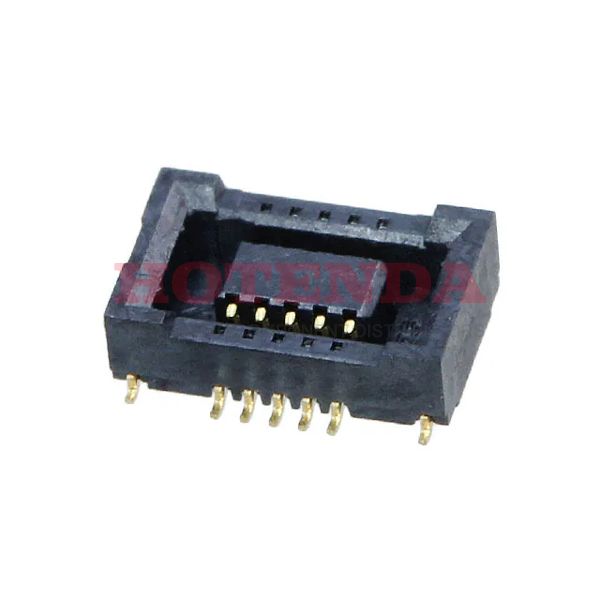

Name: DF40C-10DS-0.4V(58)
Brand: Hirose Electric Co Ltd
SKU: DF40C-10DS-0.4V(58)
Price: 0.40000 USD
Availability: InStock

new-10%

DF40C-10DS-0.4V(58)

Manufacturer part number:DF40C-10DS-0.4V(58)

Manufacturer:Hirose Electric Co Ltd

Description:DF40C-10DS-0.4V(58) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF40C-10DS-0.4V(58) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	PHOSPHOR BRONZE
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Packaging	Tape & Reel (TR)
Series	DF40
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	10
Number of Rows	2
Voltage - Rated	30V
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.016 0.40mm
Total Number of Contacts	10
Orientation	Straight
Reach Compliance Code	unknown
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Body Breadth	0.113 inch
Contact Gender	FEMALE
Operating Temperature (Min)	-35°C
Body Depth	0.057 inch
Rated Current (Signal)	0.3A
Contact Style	BELLOWED TYPE
Contact Resistance	90mOhm
Insulation Resistance	50000000Ohm
Polarization Key	POLARIZED HOUSING
Durability	30 Cycles
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Height Above Board	0.057 1.45mm
Stack Height (Mating)	1.5mm 2.5mm
RoHS Status	RoHS Compliant

DF40C-10DS-0.4V(58) Product Details

DF40C-10DS-0.4V(58) Overview

You'll get Receptacle, Center Strip Contacts packages.A Tape & Reel (TR) case is used for packaging.Surface Mount is the mounting type.The product is a member of the DF40 Series.You'll need a Surface Mount socket to mount it.
