Name: AXK6F10347YG
Brand: Panasonic Electric Works
SKU: AXK6F10347YG
Price: 0.85000 USD
Availability: InStock

new-10%

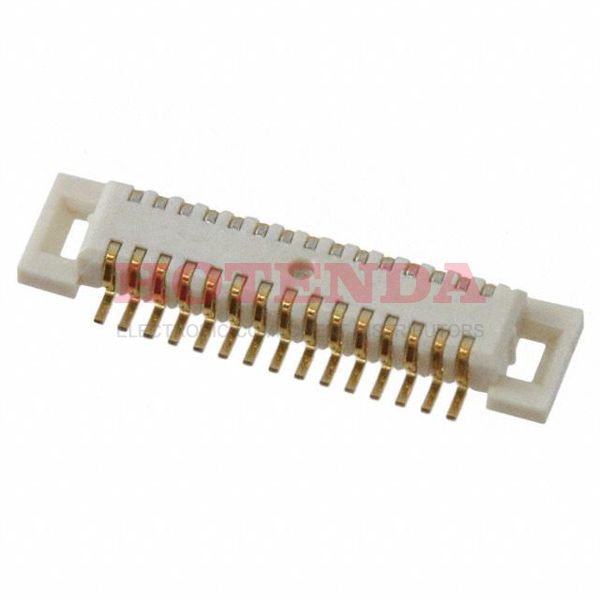

AXK6F10347YG

Manufacturer part number:AXK6F10347YG

Manufacturer:Panasonic Electric Works

Description:Header, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 10 Positions P5KF Gold Solder

Case Package:SOT-23

Datasheet:AXK6F10347YG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Published	2008
Series	P5KF
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Center Strip Contacts
Number of Positions	10
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	2
Voltage - Rated	60V
Pitch	0.020 0.50mm
Orientation	Straight
Depth	2.5mm
Current Rating	500mA
Contact Finish	Gold
Number of Contacts	10
Contact Resistance	90mOhm
Insulation Resistance	1GOhm
Max Voltage Rating (AC)	60V
Max Current Rating	10A
Max Voltage Rating (DC)	6.06kV
Length	5.5mm
Height Above Board	0.049 1.25mm
Stack Height (Mating)	1.5mm 2mm
Stack Height	1.5mm
RoHS Status	RoHS Compliant

AXK6F10347YG Product Details

AXK6F10347YG Overview

This product is packaged in a Header, Center Strip Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the P5KF Series.This part must be mounted with a Surface Mount socket.Use it below 85°C.A minimum temperature of -55°C must be maintained for the operation of this device.
