Name: 5-1775014-4
Brand: TE Connectivity
SKU: 5-1775014-4
Price: 3.59000 USD
Availability: InStock

new-10%

5-1775014-4

Manufacturer part number:5-1775014-4

Manufacturer:TE Connectivity

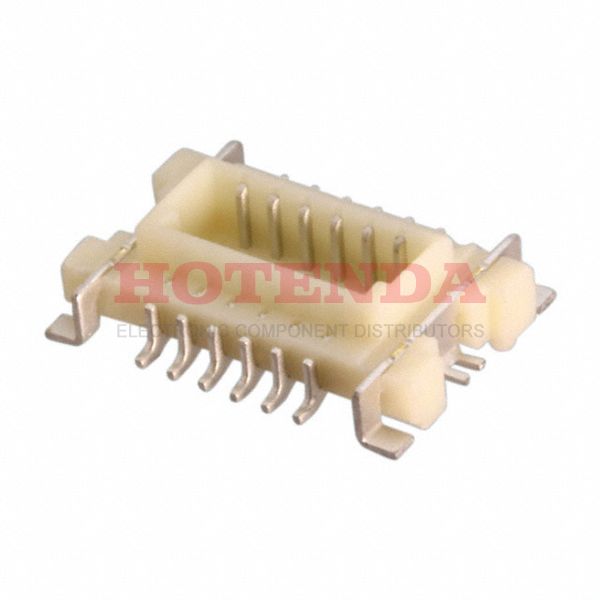

Description:Plug, Tab Tape & Reel 2 Rows 800μm 12 Positions SMD/SMT Bronze

Case Package:SOT-23

Datasheet:5-1775014-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Contact Material	Bronze
Contact Plating	Tin
Mount	Surface Mount
Contact Shape	Square
Housing Material	Nylon
PCB Mounting Orientation	Vertical
PCB Mount Retention	Without
PCB Mount Alignment	With
Packaging	Tape & Reel
Termination	SMD/SMT
Connector Type	Plug, Tab
Number of Positions	12
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Number of Rows	2
Pitch	800μm
Orientation	Vertical
Row Spacing - Mating	4.292346 mm
Number of Contacts	12
Housing Color	Black, Natural
Operating Supply Voltage	50V
Insulation Resistance	2MOhm
ELV	Compliant
Plating	Tin
Sealable	No
Circuit Application	Signal
Contact Rating (Current)	500mA
Mating Alignment	With
Preloaded	Yes
Stackable	Yes
Height	2.795016mm
Contact Finish Thickness - Mating	2.54μm
Stack Height (Mating)	3mm
Stack Height	2.9972mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5-1775014-4 Product Details

5-1775014-4 Overview

This product is packaged in a Plug, Tab box.An Tape & Reel case is utilized for packaging the product.This part must be mounted with a Surface Mount socket.Use it below 85°C.A minimum temperature of -25°C must be maintained for the operation of this device.As this device is suitable for use with a 50V supply, it can also be used with that supply.
