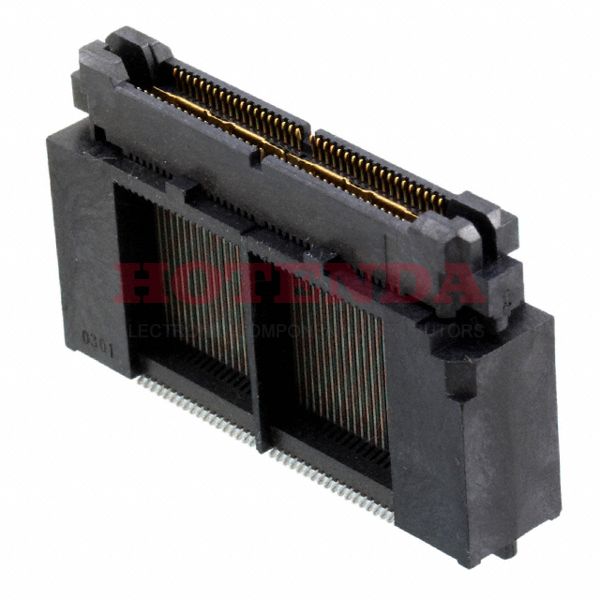

Name: 767017-2
Brand: TE Connectivity AMP Connectors
SKU: 767017-2
Price: 63.85000 USD
Availability: InStock

new

767017-2

Manufacturer part number:767017-2

Manufacturer:TE Connectivity AMP Connectors

Description:767017-2 datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:767017-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	25 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Plating	Gold, Lead, Nickel, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Underplate Material	Nickel
PCB Mount Alignment	With
Packaging	Tube
Published	2007
Series	MICTOR
Feature	Board Guide, Ground Bus (Plane)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	76
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.025 0.64mm
Total Number of Contacts	76
Orientation	Vertical
Depth	8.13mm
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	MALE
Operating Supply Voltage	30V
Rated Current (Signal)	1A
Contact Style	BELLOWED TYPE
Contact Resistance	10mOhm
Insulation Resistance	2MOhm
Row Spacing	5.79 mm
ELV	Compliant
Max Voltage Rating (AC)	30V
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
Contact Pattern	RECTANGULAR
Withdrawl Force-Min	.139 N
Sealable	No
Contact Current Rating	11.5A
Circuit Application	Signal
Data Rate	10 Gbps
Number of Columns	38
Mating Alignment	Without
Differential Signaling	Yes
Height	22.6568mm
Length	38.1mm
Width	8.128mm
Contact Finish Thickness	30.0μin 0.76μm
Plating Thickness	30μin
Contact Finish Thickness - Mating	760 nm
Height Above Board	0.892 22.66mm
Stack Height (Mating)	22.86mm 31.9mm
PCB Thickness	1.57mm
Stack Height	22.86mm
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0

767017-2 Product Details

767017-2 Overview

A Plug, Outer Shroud Contacts package is included with it.It's packaged in a Tube case.Surface Mount is the mount type.The product is a member of the MICTOR Series.If you operate it, you can keep Board Guide, Ground Bus (Plane) constant.If you wish to mount this part, you will need to use a Surface Mount socket.Whenever the temperature is below 125°C, it's best.-55°C is the minimum temperature for this device.Due to its suitability for operation with a 30V supply, this device can be used with this supply.
