Name: LPAF-20-03.0-S-08-2-K-TR
Brand: Samtec Inc.
SKU: LPAF-20-03.0-S-08-2-K-TR
Price: 20.91000 USD
Availability: InStock

new

LPAF-20-03.0-S-08-2-K-TR

Manufacturer part number:LPAF-20-03.0-S-08-2-K-TR

Manufacturer:Samtec Inc.

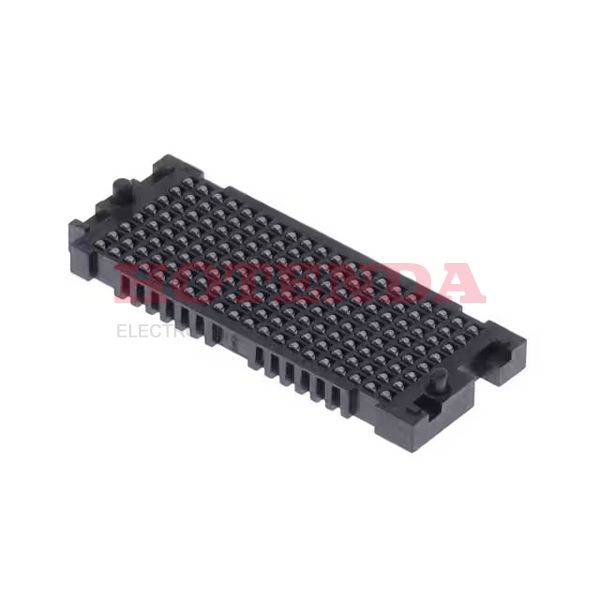

Description:Array, Female Sockets Tape & Reel (TR) 8 Rows 0.050 1.27mm Surface Mount 160 Positions SEARAY™ LPAF Gold COPPER ALLOY

Case Package:SOT-23

Datasheet:LPAF-20-03.0-S-08-2-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	COPPER ALLOY
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1	LOCKING
Board Mounting Option	PEG
Packaging	Tape & Reel (TR)
Series	SEARAY™ LPAF
Feature	Board Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Array, Female Sockets
Number of Positions	160
Number of Rows	8
Subcategory	Headers and Edge Type Connectors
Pitch	0.050 1.27mm
Total Number of Contacts	160
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	1.204 inch
Number Of PCB Rows	8
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.464 inch
Body Depth	0.102 inch
Rated Current (Signal)	2.2A
Contact Style	SQ PIN-SKT
PCB Contact Row Spacing	1.27 mm
Contact Pattern	RECTANGULAR
Mating Contact Row Spacing	0.05 inch
Insulator Color	BLACK
Contact Finish Thickness	30.0μin 0.76μm
Plating Thickness	30μin
Height Above Board	0.110 2.79mm
Stack Height (Mating)	4mm 4.5mm
RoHS Status	ROHS3 Compliant

LPAF-20-03.0-S-08-2-K-TR Product Details

LPAF-20-03.0-S-08-2-K-TR Overview

It comes in Array, Female Sockets packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the SEARAY™ LPAF Series of products.When operating, it is possible to ensure that Board Guide, Pick and Place is maintained.
