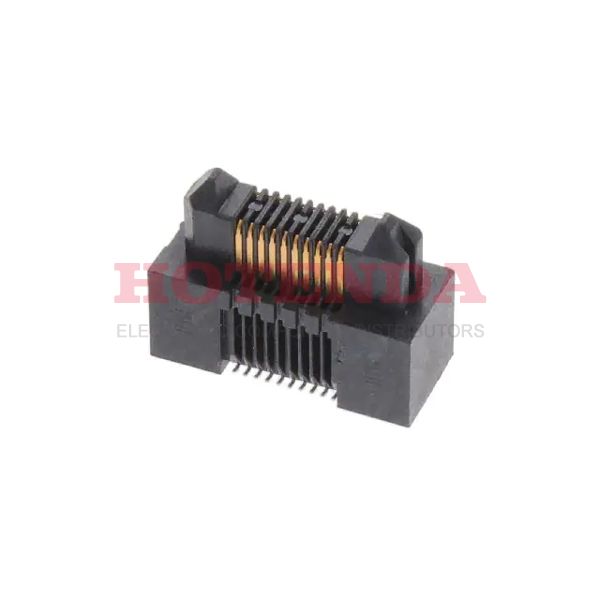

Name: ERM5-010-04.0-L-DV-TR
Brand: Samtec Inc.
SKU: ERM5-010-04.0-L-DV-TR
Price: 4.78000 USD
Availability: InStock

new-10%

ERM5-010-04.0-L-DV-TR

Manufacturer part number:ERM5-010-04.0-L-DV-TR

Manufacturer:Samtec Inc.

Description:Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 20 Positions Edge Rate™ ERM5 Gold SMD/SMT Bronze, Copper

Case Package:SOT-23

Datasheet:ERM5-010-04.0-L-DV-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Bronze, Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Packaging	Tape & Reel (TR)
Series	Edge Rate™ ERM5
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Header, Outer Shroud Contacts
Number of Positions	20
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.020 0.50mm
Total Number of Contacts	20
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.465 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.195 inch
Operating Temperature (Min)	-55°C
Rated Current (Signal)	1.5A
Contact Style	CENTRONIC
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Contact Finish Thickness	10.0μin 0.25μm
Plating Thickness	10μin
Height Above Board	0.270 6.85mm
Stack Height (Mating)	9mm 11mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

ERM5-010-04.0-L-DV-TR Product Details

ERM5-010-04.0-L-DV-TR Overview

It comes in a Header, Outer Shroud Contacts package.We pack the product in a Tape & Reel (TR) case.Surface Mount is the mounting type of the device.This is from the Edge Rate™ ERM5 Series.If Board Guide is maintained, it will operate.This part requires a Surface Mount socket.
