Name: B32678G1206K000
Brand: TDK Electronics Inc.
SKU: B32678G1206K000
Price: 13.82000 USD
Availability: InStock

new

B32678G1206K000

Manufacturer part number:B32678G1206K000

Manufacturer:TDK Electronics Inc.

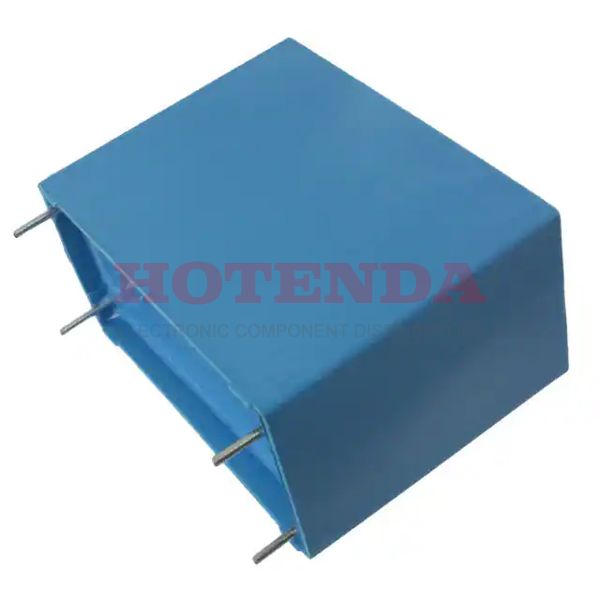

Description:B32678 20μF Film Capacitor ±10% Radial PC Pins 750V-DC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32678G1206K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	B32678
Size / Dimension	2.264Lx1.378W 57.50mmx35.00mm
Tolerance	±10%
JESD-609 Code	e3
Feature	Long Life
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
HTS Code	8532.25.00.70
Capacitance	20μF
Voltage - Rated DC	750V
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	3.5mOhm
Lead Spacing	2.067 52.50mm
Rated (DC) Voltage (URdc)	900V
Height Seated (Max)	1.969 50.00mm
Length	57.5mm
Width	35mm
RoHS Status	ROHS3 Compliant

B32678G1206K000 Product Details

B32678G1206K000 Overview

For systems to operate, a rated (DC) voltage (URdc) of 900V must be applied internally.In the device, ESR (Equivalent Series Resistance) is 3.5mOhm.A 2.067 52.50mm lead spacing is used in this electrical device.-40°C~105°C is the maximum temperature at which the device can operate.
