ECQ-E2124KFW

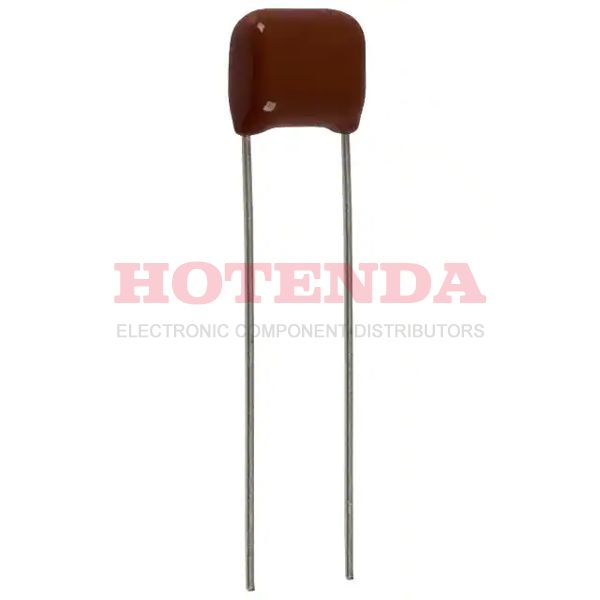

  • ECQ-E2124KFW - ECQ-E(F) 0.12μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2124KFW - ECQ-E(F) 0.12μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2124KFW

ECQ-E2124KFW

Panasonic Electronic Components

ECQ-E(F) 0.12μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2124KFW Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2005
Series ECQ-E(F)
Size / Dimension 0.406Lx0.236W 10.30mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.12μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Size Code 4124
Height Seated (Max) 0.551 14.00mm
Length 10.3mm
Width 6mm
RoHS StatusROHS3 Compliant
In-Stock:56169 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.337154$0.337154
10$0.318069$3.18069
100$0.300066$30.0066
500$0.283080$141.54
1000$0.267057$267.057

ECQ-E2124KFW Product Details

ECQ-E2124KFW Overview


The lead spacing of this electrical device is 0.295 7.50mm.It is capable of operating at -40°C~105°C degrees Celsius.

ECQ-E2124KFW Features



ECQ-E2124KFW Applications


There are a lot of Panasonic Electronic Components ECQ-E2124KFW applications of film capacitors.

  • IGBT
  • Compact fluorescent lamps (CFL)
  • Mobile communications
  • Filters
  • Global positioning systems
  • Snubbering
  • Switch-mode power supplies
  • Industrial and automotive inverters
  • Blocking
  • TV and monitor sets
