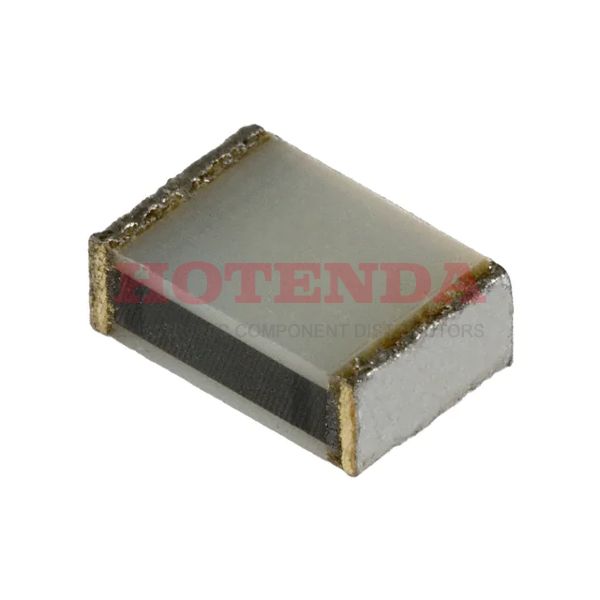

ECW-U2473V16

  • ECW-U2473V16 - ECW-U(V16) 0.047μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked PCB, Surface Mount
  • ECW-U2473V16 - ECW-U(V16) 0.047μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked PCB, Surface Mount

ECW-U2473V16

ECW-U2473V16

Panasonic Electronic Components

ECW-U(V16) 0.047μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked PCB, Surface Mount

SOT-23

ECW-U2473V16 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Contact PlatingCopper, Silver, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature-55°C~85°C
PackagingTape & Reel (TR)
Published 2006
Series ECW-U(V16)
Size / Dimension 0.236Lx0.161W 6.00mmx4.10mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 250V
Capacitance 0.047μF
Voltage - Rated DC 250V
Packing Method TR
Depth 4.1mm
Case Code (Metric) 6041
Case Code (Imperial) 2416
Capacitor Type FILM CAPACITOR
Voltage 250V
Height 2.4mm
Height Seated (Max) 0.106 2.70mm
Length 6mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:4104 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.402005$1.402005
10$1.322646$13.22646
100$1.247779$124.7779
500$1.177150$588.575
1000$1.110519$1110.519

ECW-U2473V16 Product Details

ECW-U2473V16 Overview


The device is capable of operating at the temperature of -55°C~85°C.

ECW-U2473V16 Features




ECW-U2473V16 Applications


There are a lot of Panasonic Electronic Components
ECW-U2473V16 applications of film capacitors.


  • Blocking
  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
