PFR5222J100J11L4BULK

  • PFR5222J100J11L4BULK - PFR 2200pF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polypropylene (PP) Through Hole
  • PFR5222J100J11L4BULK - PFR 2200pF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polypropylene (PP) Through Hole

PFR5222J100J11L4BULK

PFR5222J100J11L4BULK

KEMET

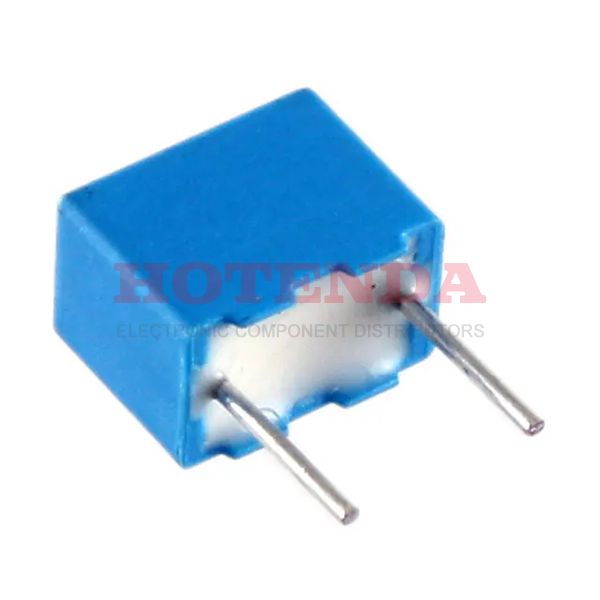

PFR 2200pF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polypropylene (PP) Through Hole

SOT-23

PFR5222J100J11L4BULK Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP)
Operating Temperature-55°C~100°C
PackagingBulk
Series PFR
Size / Dimension 0.283Lx0.177W 7.20mmx4.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching; High Pulse, DV/DT
Additional FeatureAC RATED VOLTAGE(V):63
HTS Code8532.25.00.70
Capacitance 2200pF
Voltage - Rated DC 100V
Voltage - Rated AC 63V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2818
Dissipation Factor0.04 %
Height 4.5mm
Height Seated (Max) 0.236 6.00mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:7526 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.122247$1.122247
10$1.058724$10.58724
100$0.998796$99.8796
500$0.942260$471.13
1000$0.888925$888.925

PFR5222J100J11L4BULK Product Details

PFR5222J100J11L4BULK Overview


Lead spacing is 0.197 5.00mm for this electrical device.In a temperature range of -55°C~100°C, the device can be operated.

PFR5222J100J11L4BULK Features



PFR5222J100J11L4BULK Applications


There are a lot of KEMET PFR5222J100J11L4BULK applications of film capacitors.

  • RF Modules
  • Audio/video equipment
  • Mobile communications
  • IGBT
  • RFI for automotive
  • Lighting
  • Global positioning systems
  • Switch mode power supplies
  • Snubbering
  • Electronic ballasts
