Name: BFC238340562
Brand: Vishay BC Components
SKU: BFC238340562
Price: 1.39000 USD
Availability: InStock

new-10%

BFC238340562

Manufacturer part number:BFC238340562

Manufacturer:Vishay BC Components

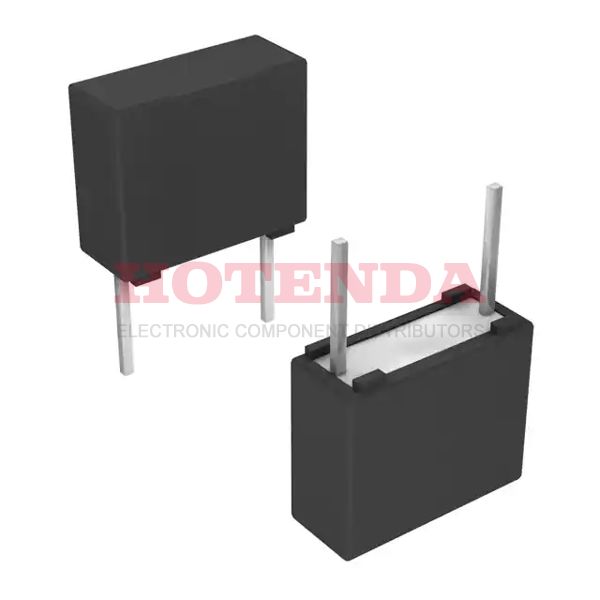

Description:MMKP383 5600pF Film Capacitor ±5% Radial PC Pins 1.4kV-DC 500V-AC Polypropylene (PP), Metallized Through Hole

Case Package:SOT-23

Datasheet:BFC238340562 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2014
Series	MMKP383
Size / Dimension	0.689Lx0.236W 17.50mmx6.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Applications	High Pulse, DV/DT
Additional Feature	FLAME PROOF, RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	5600pF
Voltage - Rated DC	1.4kV
Voltage - Rated AC	500V
Lead Pitch	15mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1400V
Size Code	6924
Height	12mm
Height Seated (Max)	0.472 12.00mm
Length	17.5mm
Width	6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

BFC238340562 Product Details

BFC238340562 Overview

For systems to function, the rated (DC) voltage (URdc) must be 1400V.0.591 15.00mm is the lead spacing of this electrical device.Temperatures as low as -55°C~105°C are suitable for the device.
