Name: B32656S0474K565
Brand: TDK Electronics Inc.
SKU: B32656S0474K565
Price: 7.93000 USD
Availability: InStock

new-10%

B32656S0474K565

Manufacturer part number:B32656S0474K565

Manufacturer:TDK Electronics Inc.

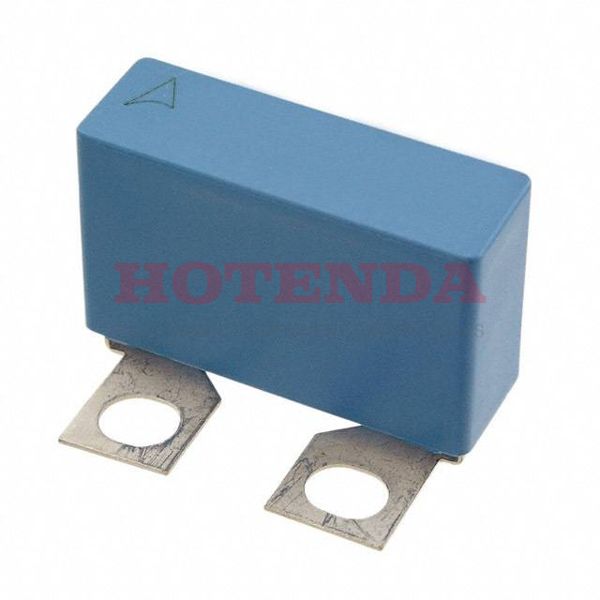

Description:B32656S 0.47μF Film Capacitor ±10% Rectangular Box Screw Terminals 1000V 1kV-DC 480V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32656S0474K565 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mounting Type	Chassis Mount
Package / Case	Rectangular Box
Surface Mount	NO
Terminal Shape	LUG
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Published	2012
Series	B32656S
Tolerance	±10%
JESD-609 Code	e3
Feature	Low ESL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Screw Terminals
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Snubber
Additional Feature	RATED AC VOLTAGE(V): 480
HTS Code	8532.25.00.80
Capacitance	0.47μF
Voltage - Rated DC	1000V 1kV
Voltage - Rated AC	480V
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	10mOhm
Lead Spacing	0.866 22.00mm
Rated (DC) Voltage (URdc)	1000V
Rated (AC) Voltage (URac)	480V
Height	25mm
Length	42mm
Width	14mm
RoHS Status	ROHS3 Compliant

B32656S0474K565 Product Details

B32656S0474K565 Overview

An internal (DC) voltage of 1000V is required for systems to function.As a result, the device has 10mOhm equivalent series resistance (ESR).0.866 22.00mm is the lead spacing of this electrical device.In order for systems to be powered, a constant (AC) voltage (URac) is required.It is capable of operating at -55°C~100°C degrees Celsius.
