160335J250Q-F

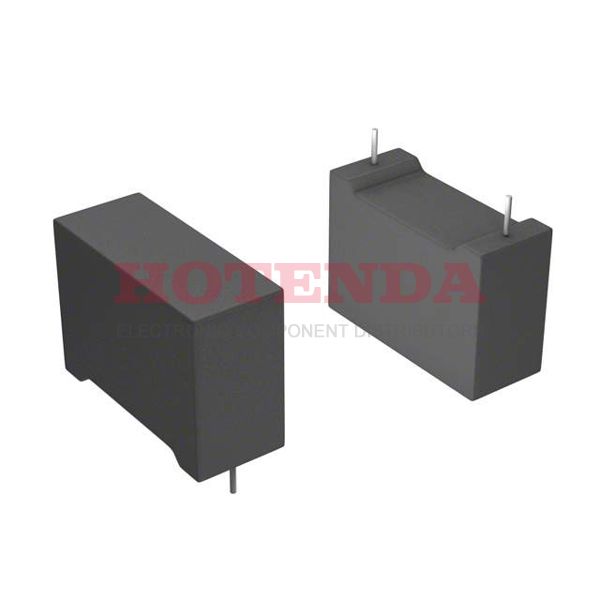

  • 160335J250Q-F - 160 3.3μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized Through Hole
  • 160335J250Q-F - 160 3.3μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized Through Hole

160335J250Q-F

160335J250Q-F

Cornell Dubilier Electronics (CDE)

160 3.3μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized Through Hole

SOT-23

160335J250Q-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series 160
Size / Dimension 1.260Lx0.512W 32.00mmx13.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 3.3μF
Voltage - Rated DC 250V
Depth 13mm
Voltage - Rated AC 160V
Lead Pitch 27.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing1.083 27.50mm
Lead Diameter 800 μm
Life (Hours) 1000 hours
Height 22.5mm
Height Seated (Max) 0.886 22.50mm
Length 32mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:2988 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160335J250Q-F Product Details

160335J250Q-F Overview


The lead spacing of this electrical device is 1.083 27.50mm.-55°C~105°C is the maximum temperature at which the device can operate.

160335J250Q-F Features



160335J250Q-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 160335J250Q-F applications of film capacitors.

  • Electronic ballasts
  • Satellite TV
  • Lighting
  • Matching networks
  • VCO's
  • Switch mode power supplies
  • Bypassing
  • Compact fluorescent lamps (CFL)
  • RFI for automotive
  • Switch-mode power supplies
