CB018B0682JBA

  • CB018B0682JBA - CB 6800pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC 10V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount
  • CB018B0682JBA - CB 6800pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC 10V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

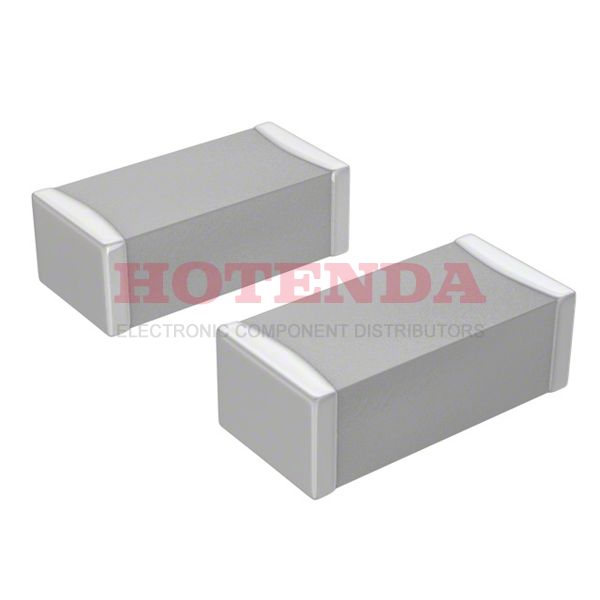

CB018B0682JBA

CB018B0682JBA

AVX Corporation

CB 6800pF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC 10V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

SOT-23

CB018B0682JBA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Number of Pins 1206
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Weight 10.007382mg
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2007
Series CB
Size / Dimension 0.130Lx0.063W 3.30mmx1.60mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Termination Solder Pads
Max Operating Temperature125°C
Min Operating Temperature -55°C
Applications General Purpose
Capacitance 6800pF
Voltage - Rated DC 16V
Voltage - Rated AC 10V
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dielectric PPS
Height 1.15mm
Height Seated (Max) 0.045 1.15mm
Length 3.302mm
Width 1.6002mm
RoHS StatusROHS3 Compliant
In-Stock:22859 items

Pricing & Ordering

QuantityUnit PriceExt. Price

CB018B0682JBA Product Details

CB018B0682JBA Overview


The device is capable of operating at the temperature of -55°C~125°C.

CB018B0682JBA Features




CB018B0682JBA Applications


There are a lot of AVX Corporation
CB018B0682JBA applications of film capacitors.


  • Blocking
  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
