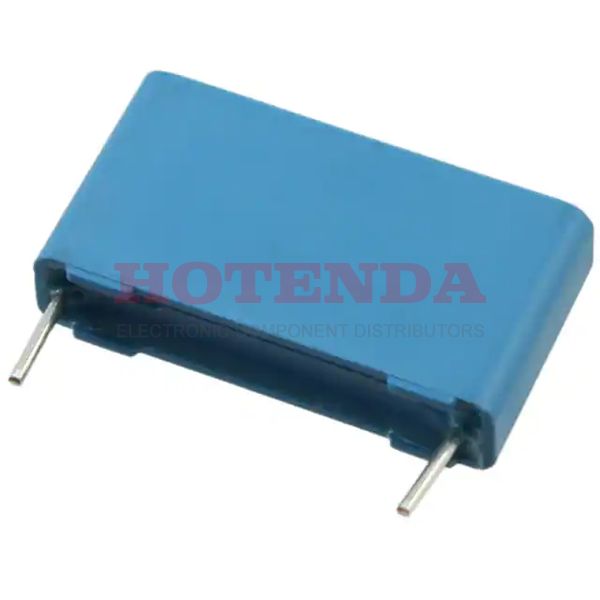

Name: B32653A6104K000
Brand: TDK Electronics Inc.
SKU: B32653A6104K000
Price: 1.24000 USD
Availability: InStock

new-10%

B32653A6104K000

Manufacturer part number:B32653A6104K000

Manufacturer:TDK Electronics Inc.

Description:B32653 0.1μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32653A6104K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Published	2013
Series	B32653
Size / Dimension	1.043Lx0.236W 26.50mmx6.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 250
HTS Code	8532.25.00.70
Capacitance	0.1μF
Voltage - Rated DC	630V
Terminal Pitch	22.5mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	250V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	630V
Rated (AC) Voltage (URac)	250V
Height Seated (Max)	0.591 15.00mm
Length	26.5mm
Width	6mm
RoHS Status	ROHS3 Compliant

B32653A6104K000 Product Details

B32653A6104K000 Overview

To function, systems require a rated (DC) voltage (URdc) of 630V.Its lead spacing is 0.886 22.50mm.System power requires an AC voltage rating of 250V (URac).Temperatures of -55°C~100°C allow the device to operate.
