Name: 947D351K132CGRSN
Brand: Cornell Dubilier Electronics (CDE)
SKU: 947D351K132CGRSN
Price: 89.61000 USD
Availability: InStock

new

947D351K132CGRSN

Manufacturer part number:947D351K132CGRSN

Manufacturer:Cornell Dubilier Electronics (CDE)

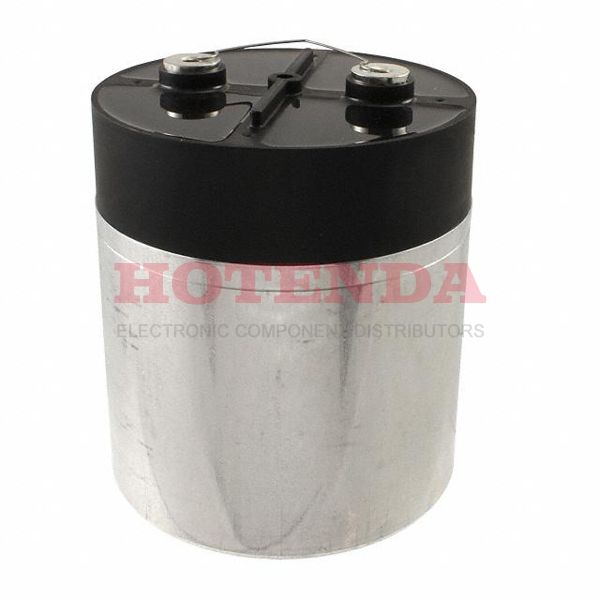

Description:947D 350μF Film Capacitor ±10% Radial, Can Threaded, Female 1.3kV-DC 230V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:947D351K132CGRSN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis, Stud Mount
Package / Case	Radial, Can
Terminal Shape	BINDING POST
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-45°C~85°C
Packaging	Bulk
Published	2014
Series	947D
Size / Dimension	3.937Dia 100.00mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Threaded, Female
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
Capacitance	350μF
Voltage - Rated DC	1.3kV
Reach Compliance Code	unknown
Voltage - Rated AC	230V
Lead Pitch	50.0126mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
ESR (Equivalent Series Resistance)	2.2mOhm
Lead Spacing	1.969 50.00mm
Rated (DC) Voltage (URdc)	1300V
Diameter	100mm
Height Seated (Max)	5.000 127.00mm
RoHS Status	ROHS3 Compliant

947D351K132CGRSN Product Details

947D351K132CGRSN Overview

It is essential that systems function with a rated (DC) voltage (URdc) of 1300V.It has 2.2mOhm ESR (Equivalent Series Resistance).Electrical devices with 1.969 50.00mm lead spacing are used in this application.A temperature of -45°C~85°C is suitable for operation of the device.
