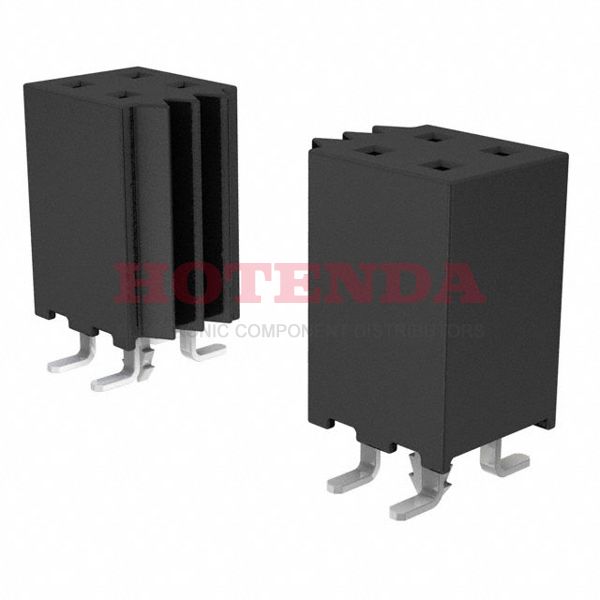

Name: SQW-106-01-LM-D-VS-LC
Brand: Samtec Inc.
SKU: SQW-106-01-LM-D-VS-LC
Availability: InStock

new-10%

SQW-106-01-LM-D-VS-LC

Manufacturer part number:SQW-106-01-LM-D-VS-LC

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 12 Positions Forked

Case Package:SOT-23

Datasheet:SQW-106-01-LM-D-VS-LC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	SQW
JESD-609 Code	e3
Feature	Board Lock
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	12
Number of Rows	2
Gender	Female
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Total Number of Contacts	12
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SQW-106-01-LM-D-VS-LC Product Details

SQW-106-01-LM-D-VS-LC Overview

A Receptacle package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tube case.It is part of the SQW Series of products.A number of features make it more powerful because of its Board Lock feature.There is no operating temperature for the device.
