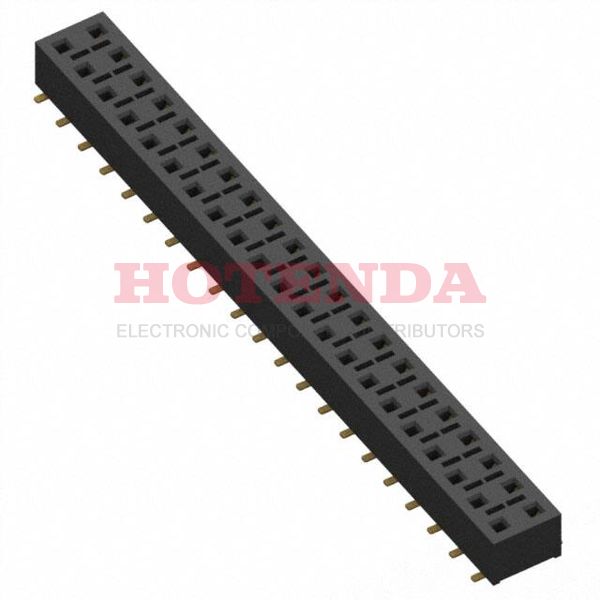

Name: HLE-121-02-G-DV-BE-P
Brand: Samtec Inc.
SKU: HLE-121-02-G-DV-BE-P
Availability: InStock

new-10%

HLE-121-02-G-DV-BE-P

Manufacturer part number:HLE-121-02-G-DV-BE-P

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderBeryllium CopperSurface MountTubeGoldLiquid Crystal Polymer (LCP)42 PositionsFemale Socket

Case Package:SOT-23

Datasheet:HLE-121-02-G-DV-BE-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	HLE
JESD-609 Code	e4
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	42
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Additional Feature	BOTTOM ENTRY, TIGER BEAM CONTACT
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	42
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish Thickness - Mating	20.0μin 0.51μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

HLE-121-02-G-DV-BE-P Product Details

HLE-121-02-G-DV-BE-P Overview

It comes in Receptacle, Bottom Entry packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the HLE Series of products.In addition, there are other features such as BOTTOM ENTRY, TIGER BEAM CONTACT, to mention only a few.Its Pick and Place feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
