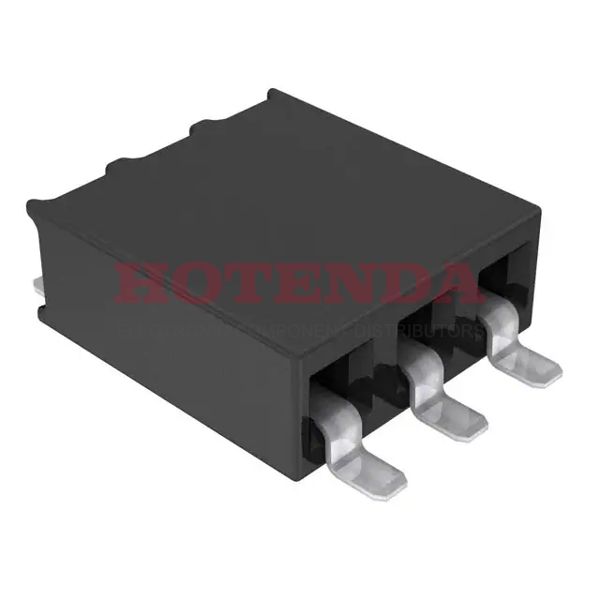

Name: SSM-103-FM-SH
Brand: Samtec Inc.
SKU: SSM-103-FM-SH
Availability: InStock

new-10%

SSM-103-FM-SH

Manufacturer part number:SSM-103-FM-SH

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeSurface Mount, Right AngleBulkGoldLiquid Crystal Polymer (LCP)3 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-103-FM-SH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SSM
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	3
Number of Rows	1
Gender	Female
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	3
Terminal Pitch	2.54mm
Insulation Height	0.125 3.18mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SSM-103-FM-SH Product Details

SSM-103-FM-SH Overview

The product is packaged in Receptacle.There is a mounting type of Surface Mount, Right Angle for this device.To package the product, a Bulk case is used.This product is from the SSM Series.Device runs in -55°C~125°C operating temperature.
