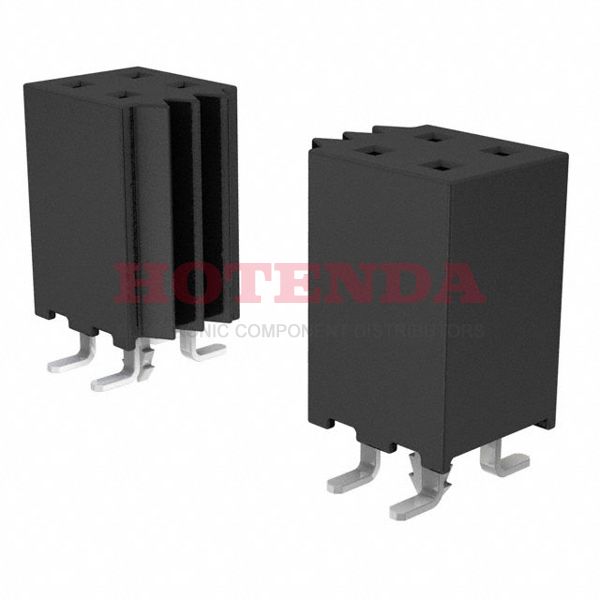

Name: SQW-112-01-L-D-VS-LC-P-TR
Brand: Samtec Inc.
SKU: SQW-112-01-L-D-VS-LC-P-TR
Availability: InStock

new-10%

SQW-112-01-L-D-VS-LC-P-TR

Manufacturer part number:SQW-112-01-L-D-VS-LC-P-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)24 PositionsForked

Case Package:SOT-23

Datasheet:SQW-112-01-L-D-VS-LC-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	SQW
Feature	Board Lock, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	24
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Total Number of Contacts	24
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Voltage - Rated AC	250V
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
Contact Gender	FEMALE
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SQW-112-01-L-D-VS-LC-P-TR Product Details

SQW-112-01-L-D-VS-LC-P-TR Overview

Packaging is in the form of Receptacle.There is a mounting type of Surface Mount for this device.This product is packaged in a case marked Tape & Reel (TR).The product is part of the SQW Series.A number of advantages are provided by its Board Lock, Pick and Place feature.In this case, the device operates at -55°C~125°C Operating Temperature.
