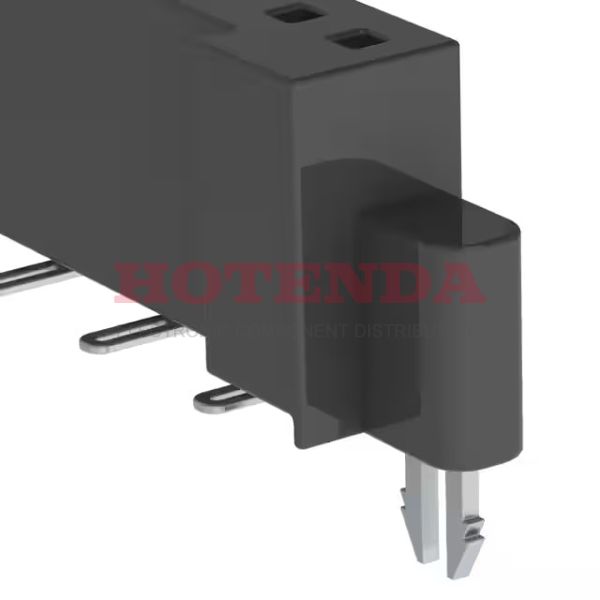

Name: SFM-135-02-L-S-LC-K
Brand: Samtec Inc.
SKU: SFM-135-02-L-S-LC-K
Availability: InStock

new-10%

SFM-135-02-L-S-LC-K

Manufacturer part number:SFM-135-02-L-S-LC-K

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderBeryllium CopperSurface MountBulkGoldLiquid Crystal Polymer (LCP)35 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-135-02-L-S-LC-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Board Mounting Option	SPLIT BOARD LOCK
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Lock, Pick and Place
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	35
Number of Rows	1
Voltage - Rated	250VAC
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	35
Terminal Pitch	2.54mm
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
Body Breadth	0.095 inch
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.695 N
Withdrawl Force-Min	.556 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-135-02-L-S-LC-K Product Details

SFM-135-02-L-S-LC-K Overview

The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number Tiger Eye™ SFM belongs to the Tiger Eye™ SFM Series.Further, there are features such as ROHS COMPLIANT, to name only a few.In many ways, it is more powerful due to its Board Lock, Pick and Place feature.This device operates at a temperature of -55°C~125°C.
