Name: PPTC081LFBN
Brand: Sullins Connector Solutions
SKU: PPTC081LFBN
Availability: InStock

new-10%

PPTC081LFBN

Manufacturer part number:PPTC081LFBN

Manufacturer:Sullins Connector Solutions

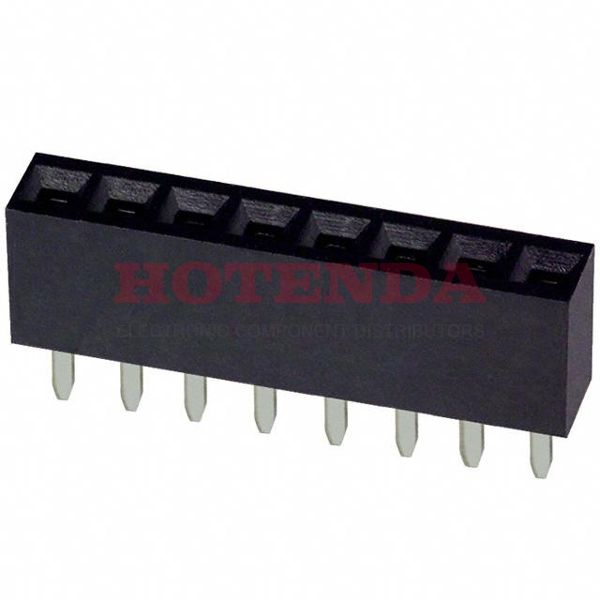

Description:1 Rows Header Solder Phosphor Bronze Through Hole Bulk Tin Polyester 8 Positions Female Socket

Case Package:SOT-23

Datasheet:PPTC081LFBN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester
Housing Material	Plastic
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2003
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Header
Number of Positions	8
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.335 8.51mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.126 3.20mm
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Body Depth	0.335 inch
Contact Resistance	20mOhm
Insulation Resistance	5000000000Ohm
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	2.54 mm
Height	8.5mm
Length	20.8mm
Width	2.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

PPTC081LFBN Product Details

PPTC081LFBN Overview

A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.Through Hole mounts the part.There is no operating temperature for the device.
