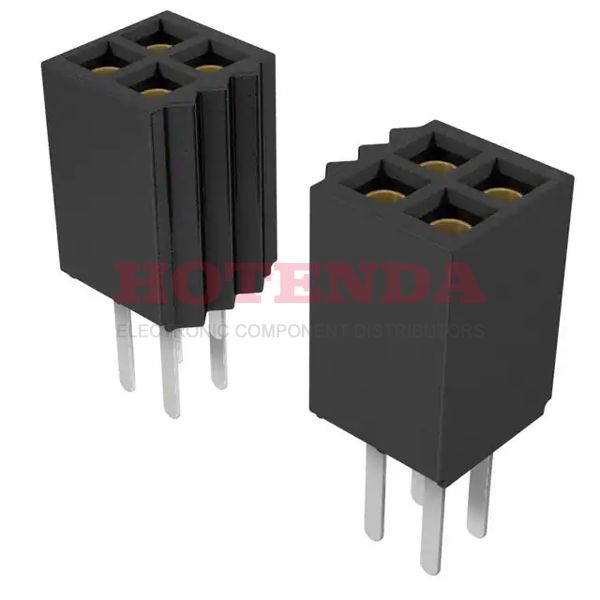

Name: SFMC-108-L1-L-D-TR
Brand: Samtec Inc.
SKU: SFMC-108-L1-L-D-TR
Availability: InStock

new-10%

SFMC-108-L1-L-D-TR

Manufacturer part number:SFMC-108-L1-L-D-TR

Manufacturer:Samtec Inc.

Description:SFMC-108-L1-L-D-TR datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:SFMC-108-L1-L-D-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	16
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	2.9A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.415 inch
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.18 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Durability	10000 Cycles
Insertion Force-Max	LIF N
Withdrawl Force-Min	.417 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-108-L1-L-D-TR Product Details

SFMC-108-L1-L-D-TR Overview

The product comes in a package of Receptacle.Through Hole is the mounting type.We pack the product in a Tape & Reel (TR) case.As a product of the Tiger Eye? SFMC Series, it can be found in this category.Device runs at -55°C~125°C Operating Temperature.
