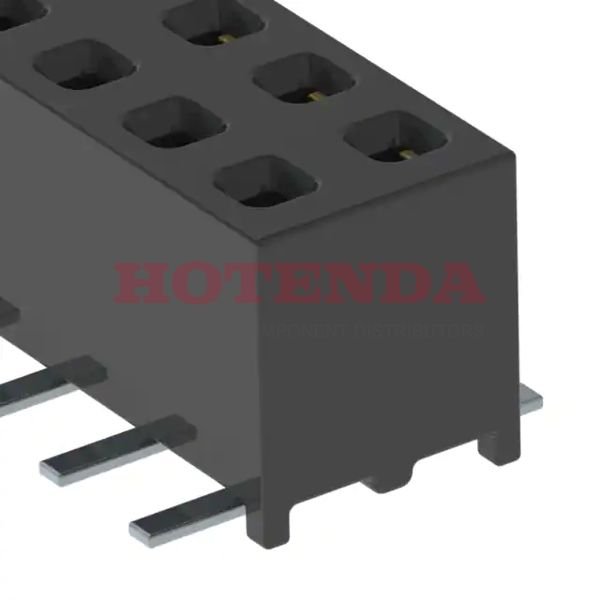

Name: MMS-111-02-F-DV-M
Brand: Samtec Inc.
SKU: MMS-111-02-F-DV-M
Availability: InStock

new-10%

MMS-111-02-F-DV-M

Manufacturer part number:MMS-111-02-F-DV-M

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTubeGoldLiquid Crystal Polymer (LCP)22 PositionsFemale Socket

Case Package:SOT-23

Datasheet:MMS-111-02-F-DV-M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	MMS
JESD-609 Code	e3
Feature	Pick and Place
Pbfree Code	yes
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	22
Number of Rows	2
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.9A per Contact
Total Number of Contacts	22
Insulation Height	0.177 4.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.891 inch
Row Spacing - Mating	0.079 (2.00mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.157 inch
Body Depth	0.177 inch
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	5.3086 mm
Withdrawl Force-Min	.6116 N
Plating Thickness	3μin
Contact Finish Thickness - Mating	3.00μin 0.076μm
RoHS Status	RoHS Compliant

MMS-111-02-F-DV-M Product Details

MMS-111-02-F-DV-M Overview

Packaging for this item is Receptacle.Surface Mount indicates that the device is mounted.In order to package the product, a Tube case is used.The product belongs to the MMS Series.This feature renders it more powerful in a number of ways because of its Pick and Place feature.There is no operating temperature for the device.
