Name: SFM-110-T2-L-D-SN-P-TR
Brand: Samtec Inc.
SKU: SFM-110-T2-L-D-SN-P-TR
Availability: InStock

new-10%

SFM-110-T2-L-D-SN-P-TR

Manufacturer part number:SFM-110-T2-L-D-SN-P-TR

Manufacturer:Samtec Inc.

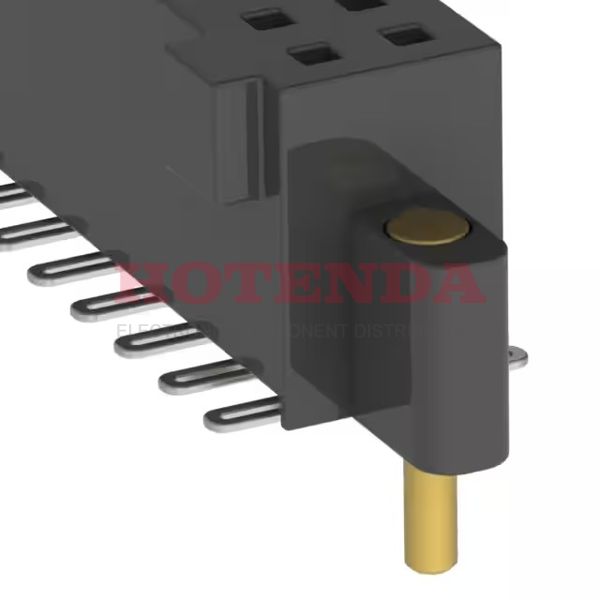

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)20 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-110-T2-L-D-SN-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Pick and Place, Solder Retention
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	20
Number of Rows	2
Voltage - Rated	250VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	20
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.685 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.145 inch
UL Flammability Code	94V-0
Body Depth	0.185 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.556 N
Withdrawl Force-Min	.417 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-110-T2-L-D-SN-P-TR Product Details

SFM-110-T2-L-D-SN-P-TR Overview

The packaging is Receptacle.This device has a mounting type of Surface Mount.Packaging the product involves using a Tape & Reel (TR) case.It belongs to the Tiger Eye™ SFM Series of products.It is more powerful in many ways due to its Pick and Place, Solder Retention feature.Operating temperature is set to -55°C~125°C.
