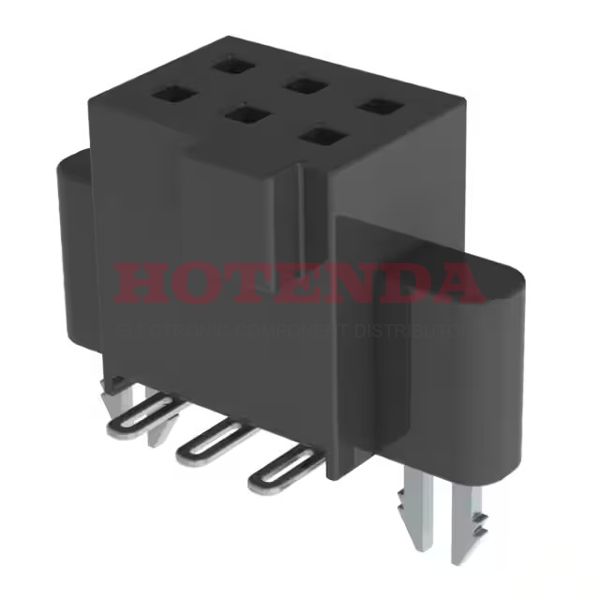

Name: SFM-103-L2-L-D-LC-TR
Brand: Samtec Inc.
SKU: SFM-103-L2-L-D-LC-TR
Availability: InStock

new-10%

SFM-103-L2-L-D-LC-TR

Manufacturer part number:SFM-103-L2-L-D-LC-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)6 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFM-103-L2-L-D-LC-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFM
Feature	Board Lock
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	6
Number of Rows	2
Voltage - Rated	250VAC
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	6
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-103-L2-L-D-LC-TR Product Details

SFM-103-L2-L-D-LC-TR Overview

This product is packaged in a Receptacle box.Surface Mount is the mounting type.A Tape & Reel (TR) case is used to package the product.The product is a part of the Tiger Eye™ SFM Series.There are also other features, like POLARIZED, to name a few.A number of aspects of its Board Lock feature make it more powerful.Operating temperature is -55°C~125°C.
