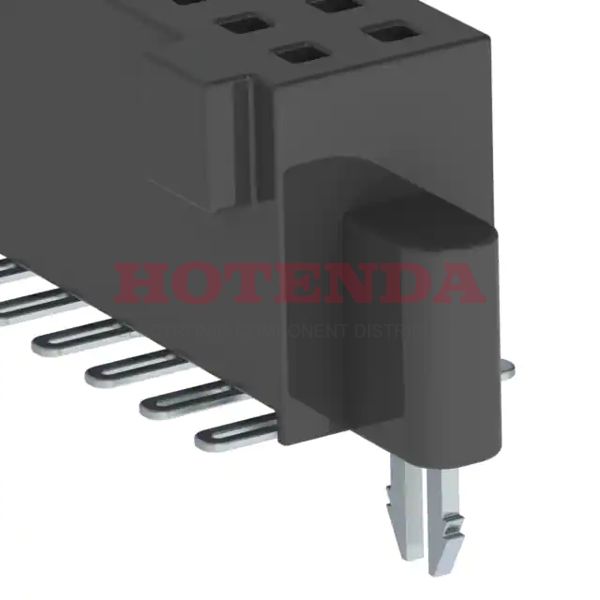

Name: SFM-150-T2-L-D-LC-TR
Brand: Samtec Inc.
SKU: SFM-150-T2-L-D-LC-TR
Availability: InStock

new-10%

SFM-150-T2-L-D-LC-TR

Manufacturer part number:SFM-150-T2-L-D-LC-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 100 Positions Female Socket

Case Package:SOT-23

Datasheet:SFM-150-T2-L-D-LC-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Board Lock
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	100
Number of Rows	2
Voltage - Rated	250VAC
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	100
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.145 inch
UL Flammability Code	94V-0
Body Depth	0.185 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.556 N
Withdrawl Force-Min	.417 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-150-T2-L-D-LC-TR Product Details

SFM-150-T2-L-D-LC-TR Overview

It comes in Receptacle packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Tiger Eye™ SFM Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.Its Board Lock feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
