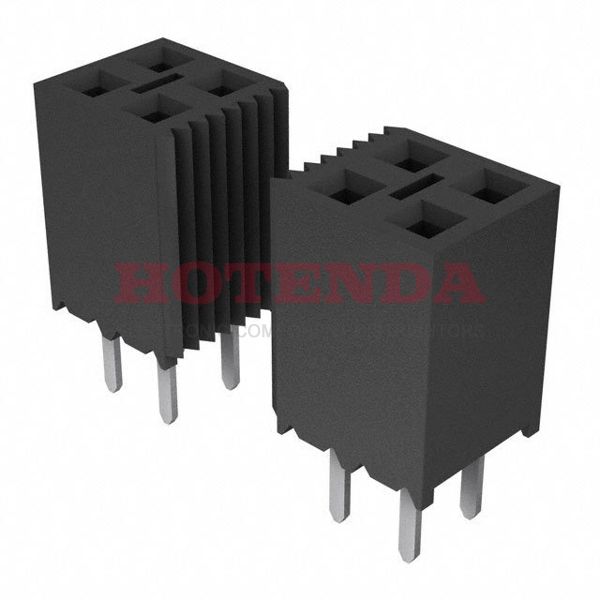

Name: BCS-105-SM-D-TE
Brand: Samtec Inc.
SKU: BCS-105-SM-D-TE
Availability: InStock

new-10%

BCS-105-SM-D-TE

Manufacturer part number:BCS-105-SM-D-TE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-105-SM-D-TE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Gender	Female
Voltage - Rated	475VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.122 3.10mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BCS-105-SM-D-TE Product Details

BCS-105-SM-D-TE Overview

Packaging for this item is Receptacle.Mounting type is Through Hole.A Tube case is used to package the product.The product belongs to the Tiger Claw™ BCS Series.Mounting of the part is based on Through Hole.Operating temperature is -55°C~125°C.
