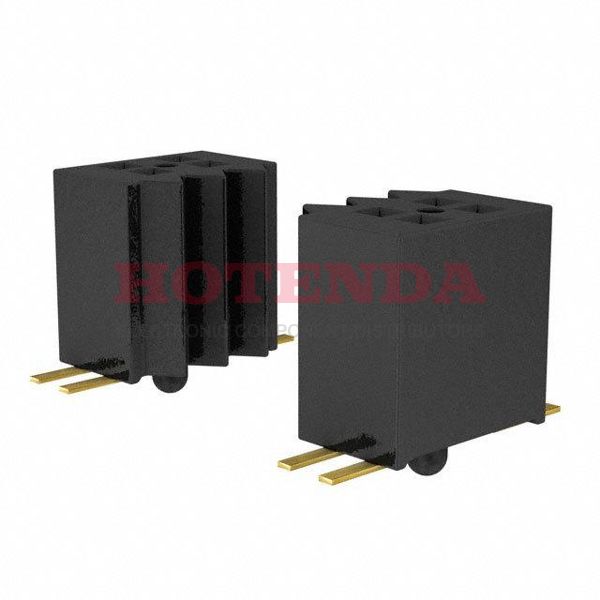

Name: CLE-107-01-F-DV-A
Brand: Samtec Inc.
SKU: CLE-107-01-F-DV-A
Availability: InStock

new-10%

CLE-107-01-F-DV-A

Manufacturer part number:CLE-107-01-F-DV-A

Manufacturer:Samtec Inc.

Description:CLE-107-01-F-DV-A datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:CLE-107-01-F-DV-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2016
Series	CLE
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Pass Through
Number of Positions	14
Number of Rows	2
Gender	Female
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.7A per Contact
Total Number of Contacts	14
Terminal Pitch	0.8mm
Insulation Height	0.130 3.30mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.031 0.80mm
Insulation Color	Black
Row Spacing - Mating	0.047 (1.20mm)
Contact Finish Thickness - Mating	3.00μin 0.076μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CLE-107-01-F-DV-A Product Details

CLE-107-01-F-DV-A Overview

Packaging for this item is Receptacle, Pass Through.This device is mounted in the Surface Mount position.Packaging the product involves using a Bulk case.This product is in the CLE Series.A number of features make it more powerful because of its Board Guide feature.Devices operate at -55°C~125°C operating temperatures.
